SPRO 8MP HDCVI Motorised Lens Turret With Built-In Microphone

Zoom

Availability

In stock, immediate despatch

You may also like

Deep Base, White

SPRO Wall Bracket, White

4 Way In-line PSU, Unearthed (for 8MP cameras)

Part Number: DHD80/ARW/60M-T-M
Brand: SPRO
Camera Resolution 8 Megapixels
Lens Motorised Lens
IR Distance Up to 60m IR distance
Protocol CVI
Built-in Mic. Yes
Style Turret

Information
Specifications
Delivery

The DHD80/ARW/60M-T-M can capture 4k footage and offer up to 60m IR with a built-in microphone to utilise the audio over co-ax. Feature with compatible recorders.

Audio over co-ax allows the camera to transmit audio picked up from its built-in microphone and transmit this over the came co-ax cable as the video transmission. An audio over co-ax compatible recorder is required to fully utilise this function and would allow audio on each channel an audio over co-ax camera is on.

Due to the sensitivity of these cameras you may occasionally get some interference from the power supply. We recommend that you use either a 3amp ungrounded power supply or, if using a box power supply, one of the dedicated isolators.

Check out the SPRO video academy.

Specifications:
Model Number	DHD80/ARW/60M-T-M
Image Sensor	1/2.7 inch CMOS
Effective Pixels	3840(H)×2160(V), 8MP
Electronic Shutter Speed	1/3s-1/100000s
Min. Illumination	0.03Lux/F1.7, 30IRE, 0Lux IR on
Max. IR LEDs Length	Distance up to 60m
IR On/Off Control	Auto/ Manual
IR LEDs	2
Lens
Lens Type	Motorized lens
Mount Type	φ14
Focal Length	2.7mm–13.5mm
Max Aperture	F1.7
Angle of View	H.: 105°–33° × V.: 56°–18°× D.: 126°–38°
Iris Type	Fixed iris
Close Focus Distance	0.8m
DORI Distance	Detect: 90-264 m Observe: 36-264 m Recognize: 18-53 m Identify: 9-26 m
Pan / Tilt / Rotation
Pan/Tilt/Rotation	Pan:0˚~360˚ / Tilt: 0° ~ 78° / Rotation: 0° ~ 360°
Video
Resolution	4K (3840 × 2160); 5M (2592 × 1944); 4M (2560 × 1440); 960H (960× 576/ 960 × 480)
Video Frame Rate	CVI: 4K@15fps; 5M@20fps; 4M@25fps, CVBS: PAL/NTSC
Day/Night	Auto switch by ICR
BLC Mode	BLC / HLC / DWDR
WDR	120dB
White Balance	Auto / Manual
Gain Control	Auto / Manual
Noise Reduction	2D & 3D NR
Smart IR	Yes
Electronic Defog	Yes
Digital Zoom	4X
Mirror	Off/On
Privacy Masking	Off/On (8 Area, Rectangle)
Port
Audio Port	One channel, built-in mic (-A)
Video Port	Video output: HDCVI
General
Power Supply	DC12V±30%
Power Consumption	Max 7.8W (12V DC, IR on)
Operating Conditions	-30°C ~ +60°C / Less than 95% RH
Strorage Conditions	-30°C ~ +60°C / Less than 95% RH
Protection Grade	IP67
Casing	Metal throughout the whole casing

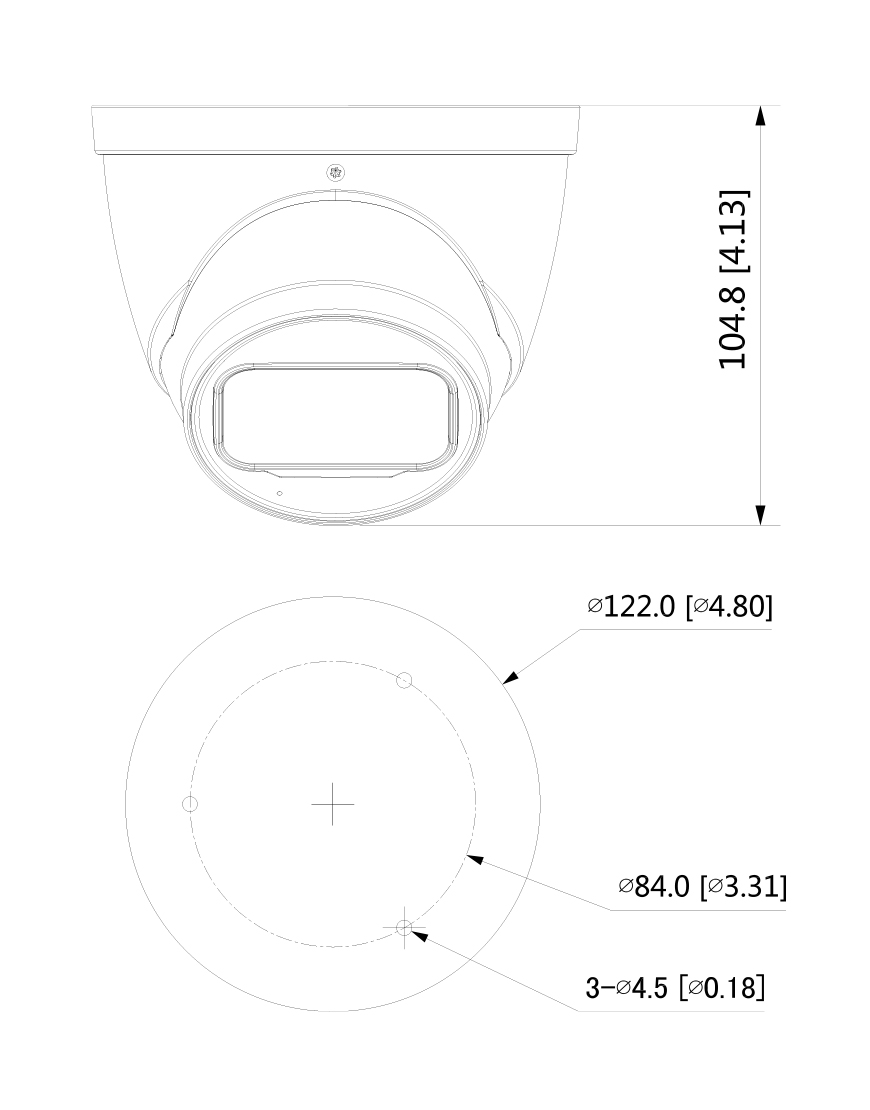

Dimensions	Φ122.0mm×104.8mm (Φ4.80"×4.13")
Net Weight	0.58kg (1.28lb)
Gross Weight	0.73kg (1.616lb)
