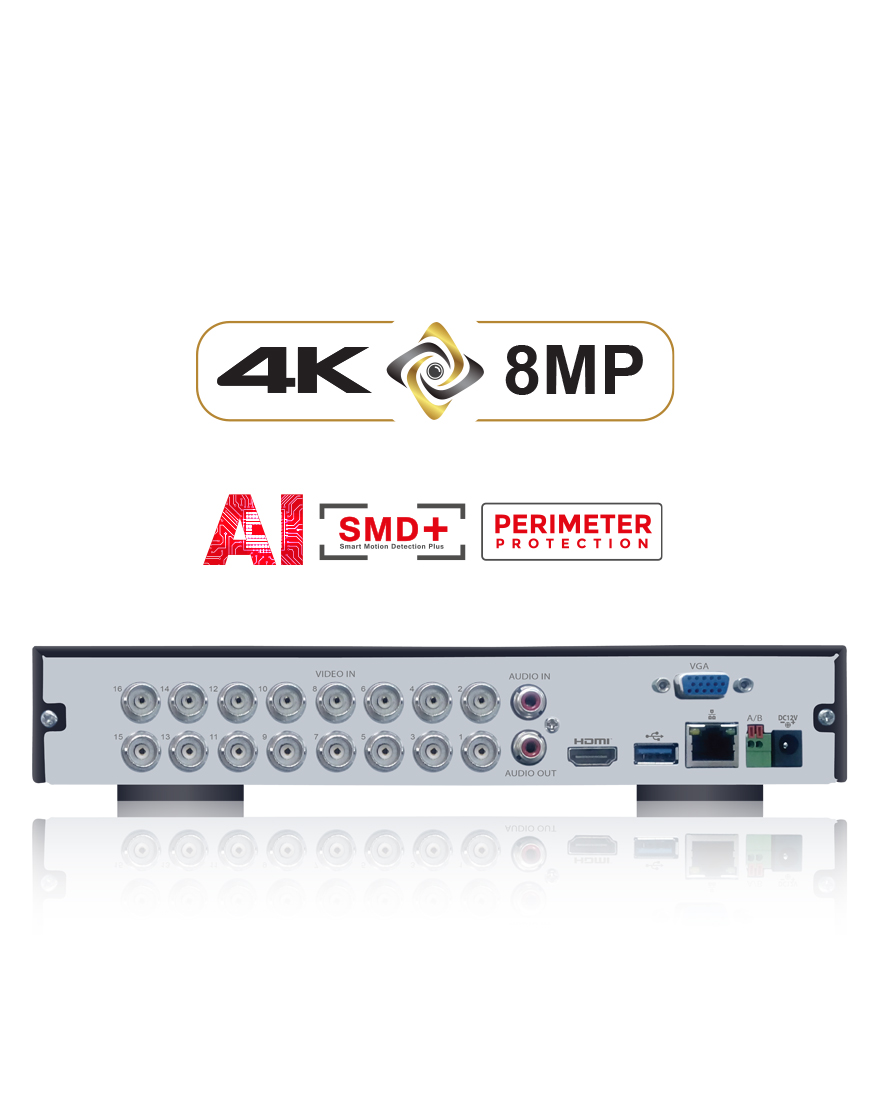

SPRO B6 8MP 16 Channel 5in1 with AI

Hard Drive

Part Number: DHDVR24-B6-0TB
Recorder Resolution 8MP
Audio over co-ax On each channel
SMD (Smart Motion Detection) Yes
Perimeter Protection Yes
Tripwire Yes
Intrusion Yes
Face detection Yes
BNC Channels 16 Channel
Extra IP Channels 16 Channel
Smart Dual Illumination Supported Yes

Information
Specifications
Delivery
More Videos

The SPRO B6 8MP 16 Channel 5in1 with AI combines advanced technology with a sleek design. Featuring Intrusion, Tripwire, Face Detection, Perimeter Protection, and Smart Motion Detection Plus all provide superior security and monitoring capabilities. With 16 BNC channels and the ability to add an additional 16 IP channels via the local network, it allows a total of 32 cameras to be displayed and recorded on the device.

Check out the SPRO video academy.

Specifications:
Model Number	DHDVR24-B6
Main Processor	Embedded processor
Operating System	Embedded LINUX
Perimeter Protection
Performance	2 channels, 10 IVS for each channel
Object classification	Human/Vehicle secondary recognition for tripwire and intrusion
AI Search	Search by target classification (Human, Vehicle)
Face Recognition
Performance	Max 12 face pictures/sec processing 2 channels video stream face recognition, only support analog camera
Stranger Mode	Detect strangers' faces (not in device's face database). Similarity threshold can be set manually.
AI Search	Up to 8 target face images search at same time, similarity threshold can be set for each target face image.
Database Management	Up to 10 face databases with 20,000 face images in total. Name, gender, birthday, address, certificate type, cerificate No., countries and state can be added to each face picture.
Database Application	Each database can be applied to video channels independently.
Trigger Events	Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc.
SMD Plus
Performance	16 channels
AI Search	Search by target classification (Human, Vehicle)
Video & Audio
Analog Camera Input	16 channels, BNC
HDCVI Camera Input	4K, 6MP, 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
AHD Camera Input	4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps
TVI Camera Input	4K, 5MP, 4MP, 1080P@25/30, 720P@25/30fps
CVBS Camera Input	PAL/NTSC
IP Camera Input	16+16 channels, each channel up to 8MP
Audio In/Out	P1/1, RCA
Two-way Talk	Reuse audio in/out, RCA
Recording
Compression	AI Coding/H.265+/H.265/H.264+/H.264
Resolution	4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Record Rate - Main Stream	4K(7fps), 6MP(10fps), 5MP(12fps),4MP/3MP(15fps),4M-N/ 1080P/ 720P/ 960H/ D1/ CIF/ QCIF (25fps)
Record Rate - Sub Stream	960H (1~15fps), D1/ CIF/ QCIF (1~25fps)
Bit Rate	32Kbps~6144Kbps Per Channel
Record Mode	Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval	1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Audio Compression	G.711A, G.711U, PCM
Audio Sample Rate	8KHz, 16 bit Per Channel
Audio Bit Rate	64Kbps Per Channel
Display
Interface	1 HDMI, 1 VGA
Resolution HDMI	3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720
Resolution VGA	1920×1080, 1280×1024, 1280×720
Multi-screen Display	When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25/36
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Network
Ethernet	1 RJ-45 Port (1000 MB)
Network Functions	HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Max. User Access	128 users
Smart Phone	iPhone, iPad, Android Phone
Interoperability	ONVIF 16.12, CGI Conformant
Video Detection & Alarm
Trigger Events	Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video Detection	Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm input	N/A
Relay Output	N/A
Playback & Backup
Playback	1/4/9/16
Search Mode	Time/Date, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device/Network
Storage
Internal HDD	1 SATA Ports, up to 10TB capacity for each disk
Auxiliary Interface
USB Interface	2 USB Ports (1 USB 2.0 , 1 USB 3.0)
RS485	1 port, For PTZ Control
RS232	N/A
General
Power Supply	DC12V/3A
Power Consumption	<15W (without HDD)
Dimensions	Compact 1U, 260 mm × 238 mm × 48 mm
Net Weight	1.3KG(without HDD)
Gross Weight	2.1KG(without HDD)
Operating Environment	-10°C ~+55°C / 0%~90%RH
Storage Conditions	-20°C ~+70°C / 0%~90%RH
