| Specifications: | |
|---|

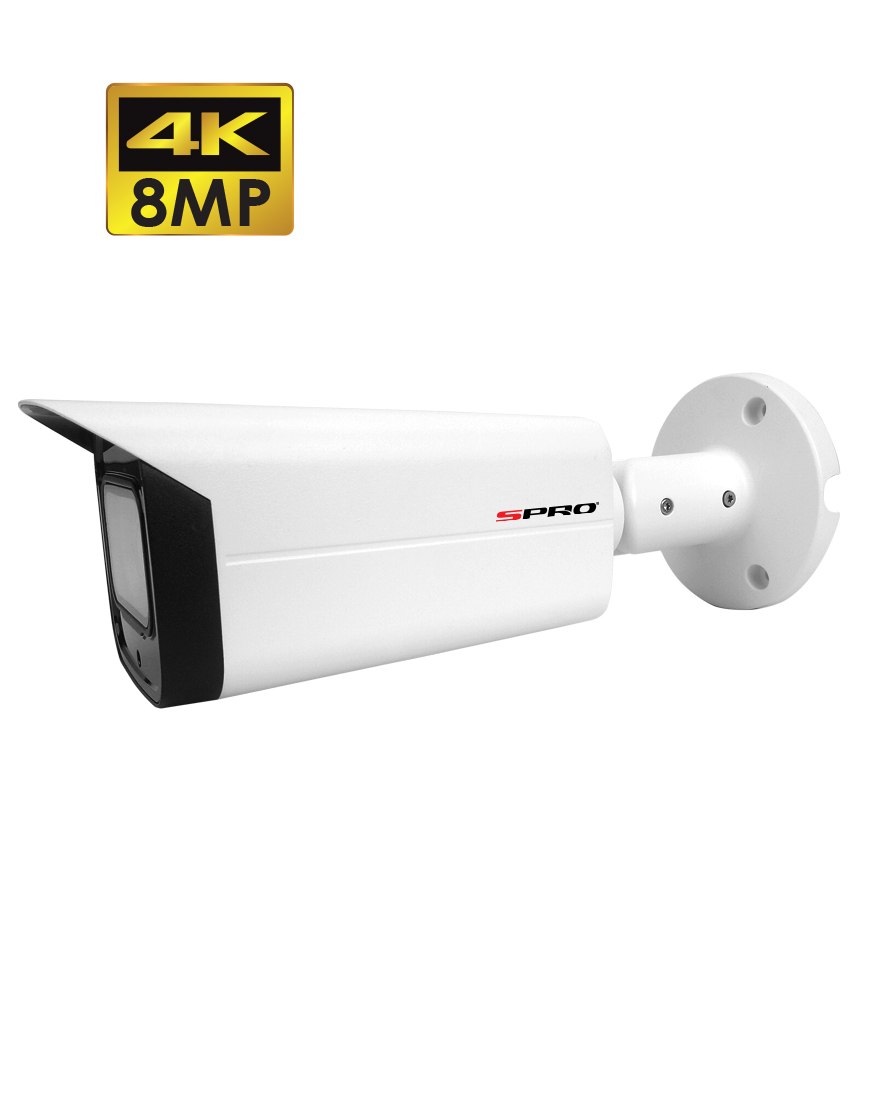

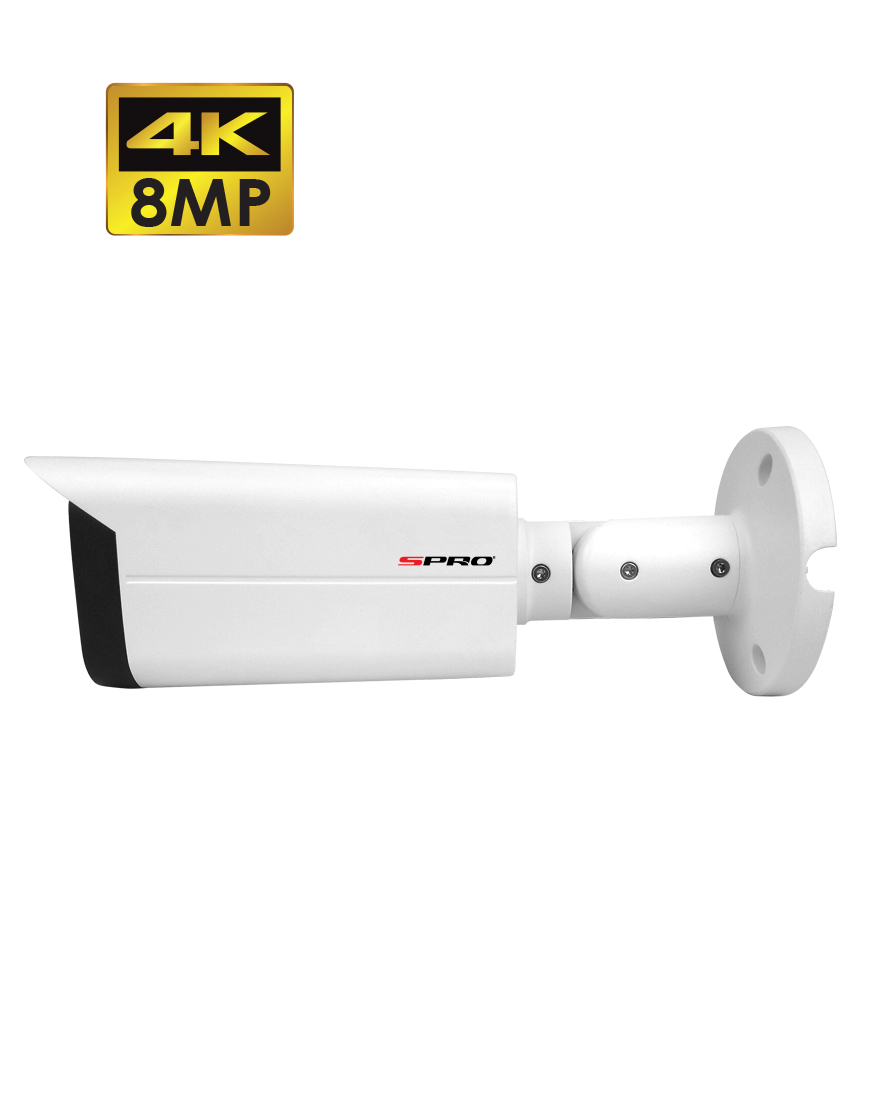

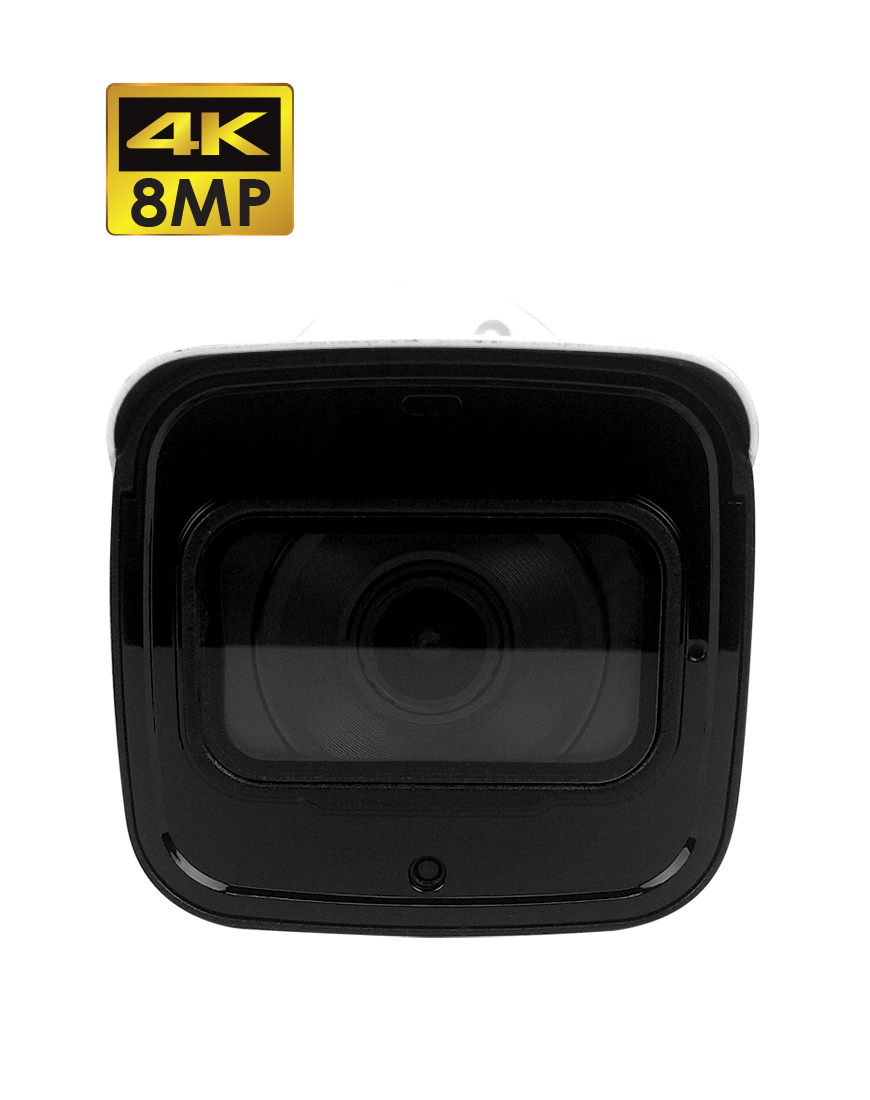

| Model Number | DHIPQ80/ARW/60M |
| Image Sensor | 1/2.7” 8Megapixel progressive CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s |
| Min. Illumination | 0.008 Lux@F1.5 |
| IR Distance | Up to 60m |
| IR On/Off Control | Auto/ Manual |
| IR LEDs | 4 |
| Lens | |
| Lens Type | Motorized |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Pan: 113°-31° × Tilt: 58°-17°; × Diagonal: 138°-36° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m |
| DORI Distance | Detect: 85.3-280 m
Observe: 34.1-112 m
Recognize: 17-56 m
Identify: 8.5-28 m |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation Range | Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚ |
| Intelligence | |
| IVS | Tripwire, Intrusion |
| Advanced Intelligent Functions | N/A |
| Video | |
| Compression | H.265; H.264; H.264B; MJPEG |
| Streaming Capability | 2 Streams |
| Resolution | 3840 × 2160; 3072 × 2048; 3072 × 1728; 2592 × 1944; 2688 × 1520;
3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480);
CIF (352 × 288/352 × 240)4K(1~15fps)/ 2688 × 1520 (1~25fps) |
| Frame Rate-Main Stream | 3840 × 2160 (1 fps–15 fps); 2688 × 1520 (1 fps–25fps) |
| Frame Rate-Sub Stream | 704 × 576 (1 fps–25 fps); 704 × 480 (1 fps–30 fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.264: 32 Kbps– 8192 Kbps
H.265: 12 Kbps– 8192 Kbps |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / WDR (120dB) |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor /Manual |
| Gain Control | Auto/ Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Areas, Rectangle) |
| Region of Interest | Off / On (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/ 90°/ 180°/ 270° |
| Mirror | Yes |
| Privacy Masking | 4 Area |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP;
FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP;
NFS; PPPoE; 802.1x; Bonjour |
| Interoperability | ONVIF, CGI, P2P, Milestone, Genetec |
| Max. User Accessr | 10 Users |
| Edge Storage | NAS / Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SPRO CSS |
| Smart Phone | iPhone, iPad & Android |
| General | |
| Power Supply | DC12V, POE |
| Power Consumption | <9.9W |
| Operating Conditions | -30ºC ~ +60ºC / Less than 95% RH |
| Storage Conditions | -30ºC ~ +60ºC |
| Ingress Protection | IP67 |
| Casing | Metal |

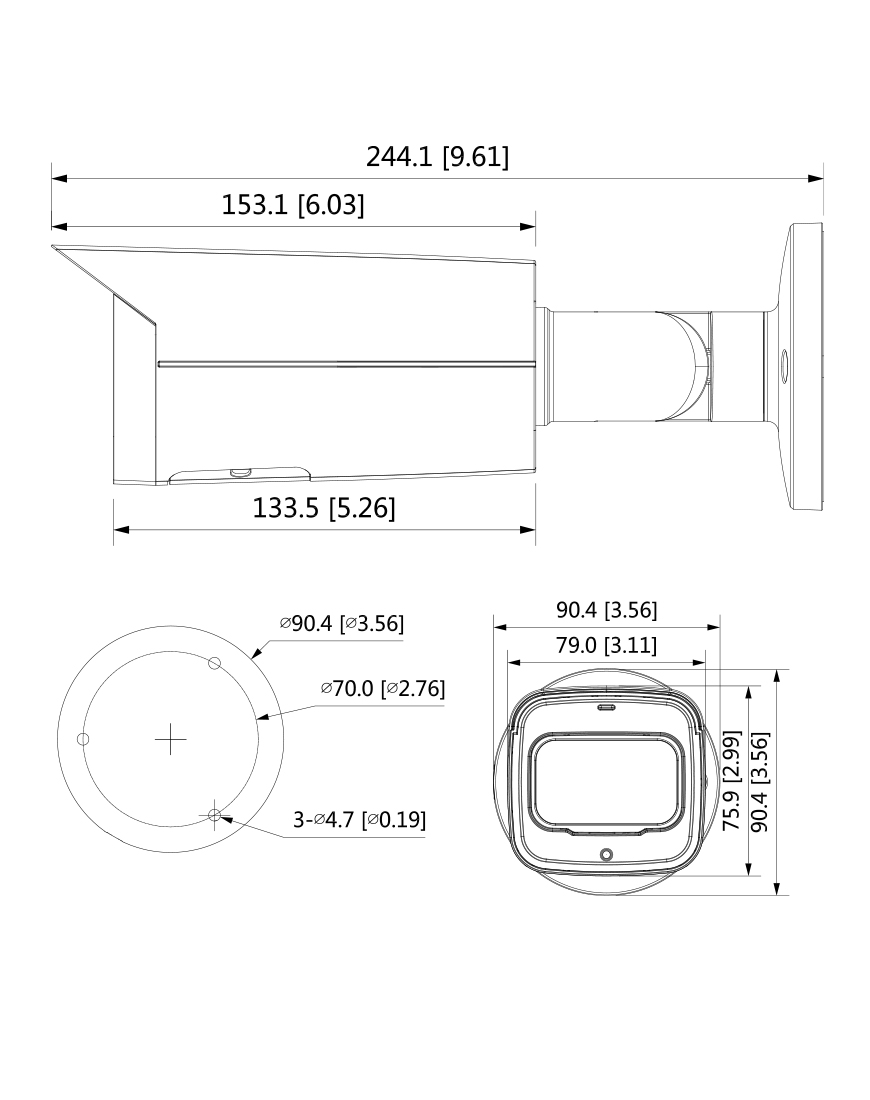

| Dimensions | φ244.1mm × 90.4mm |
| Net Weight | 0.86Kg |
| Gross Weight | 1.10Kg |
