4 Way Box PSU

4 Way Box PSU
  Zoom
4 Way Box PSU4 Way Box PSU4 Way Box PSU

Availability



In stock, immediate despatch

Part Number:  PS1205-04BOX
Brand:  Haydon
PSU  Box PSU

Haydon

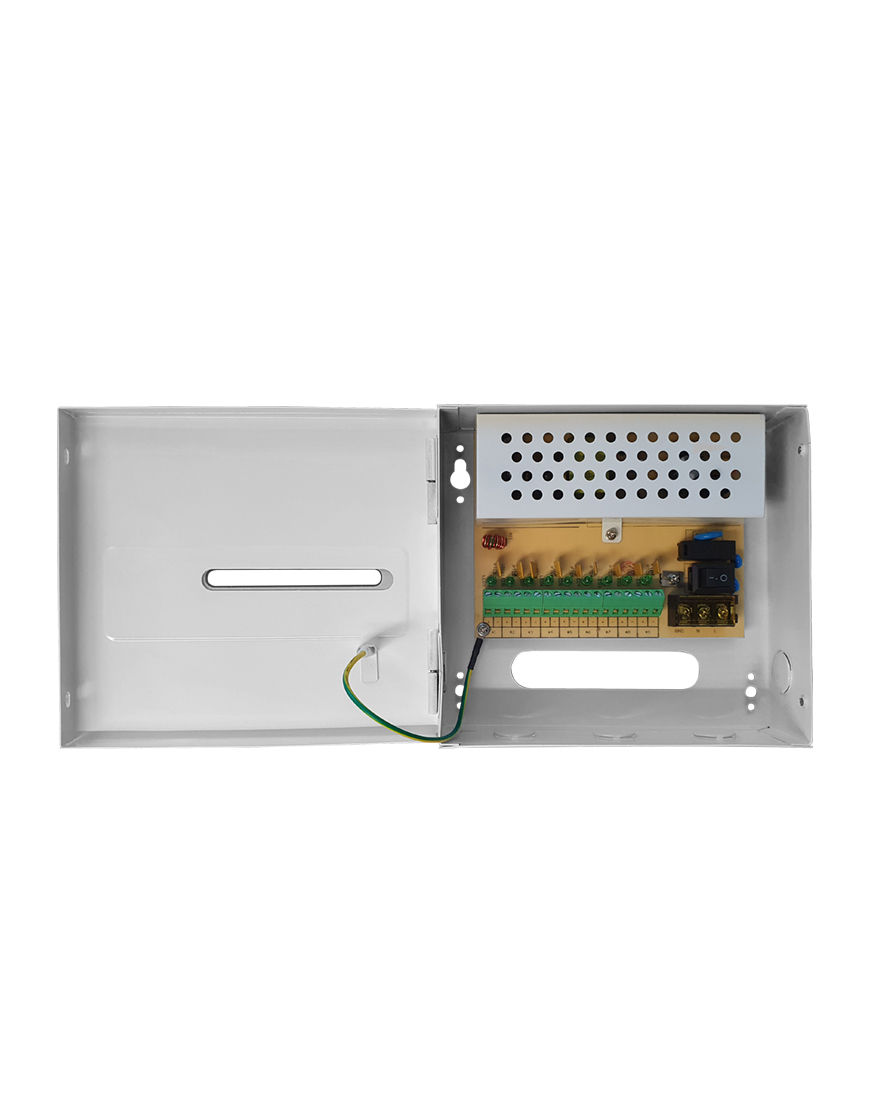

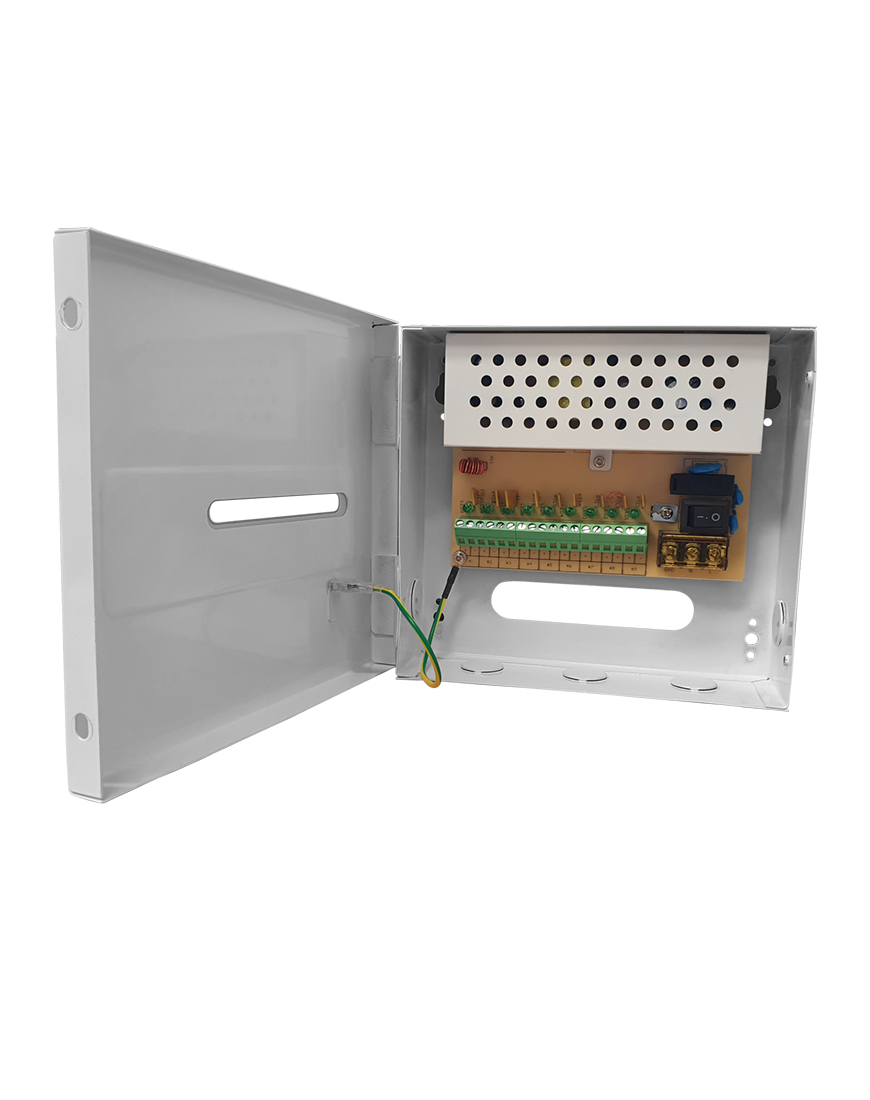

4-Way Boxed CCTV Power Supply: Equipped with PTC fuse protection, this compact unit ensures consistent and safe power for up to four cameras, housed in a durable metal casing. Ideal for streamlining surveillance setups.

Specifications:
Model NumberPS1205-04BOX
Input VoltageAC 110 – 240V Rated 3amp main fuse
Outputs9 x 12VDC Outputs
Maximum Output5 Amps
Auto Reset PTC Fuse for each Output4 Output 1.6 Amps 5 Output 1.1 Amps *Not exceeding 5 Amps Total Output*
Regulated   Filtered Yes
Surge ProtectedYes
Internal ON/OFF Power SwitchYes
Individual LED Output IndicatorYes
Dimensions18 x 16.5 x 5.2 cm
Weight1.0 Kgs
CE   RoHS CompliantYes

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products

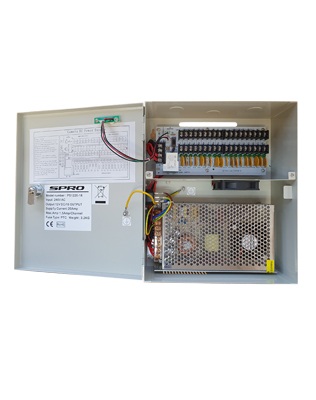

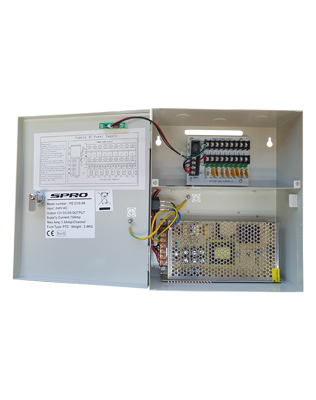

SPRO 9 Way Box PSU
