2.0MP Door Entry Module

2.0MP Door Entry Module
  Zoom
2.0MP Door Entry Module2.0MP Door Entry Module2.0MP Door Entry Module

Availability



In stock, immediate despatch

Part Number:  VI-MODULE02-A

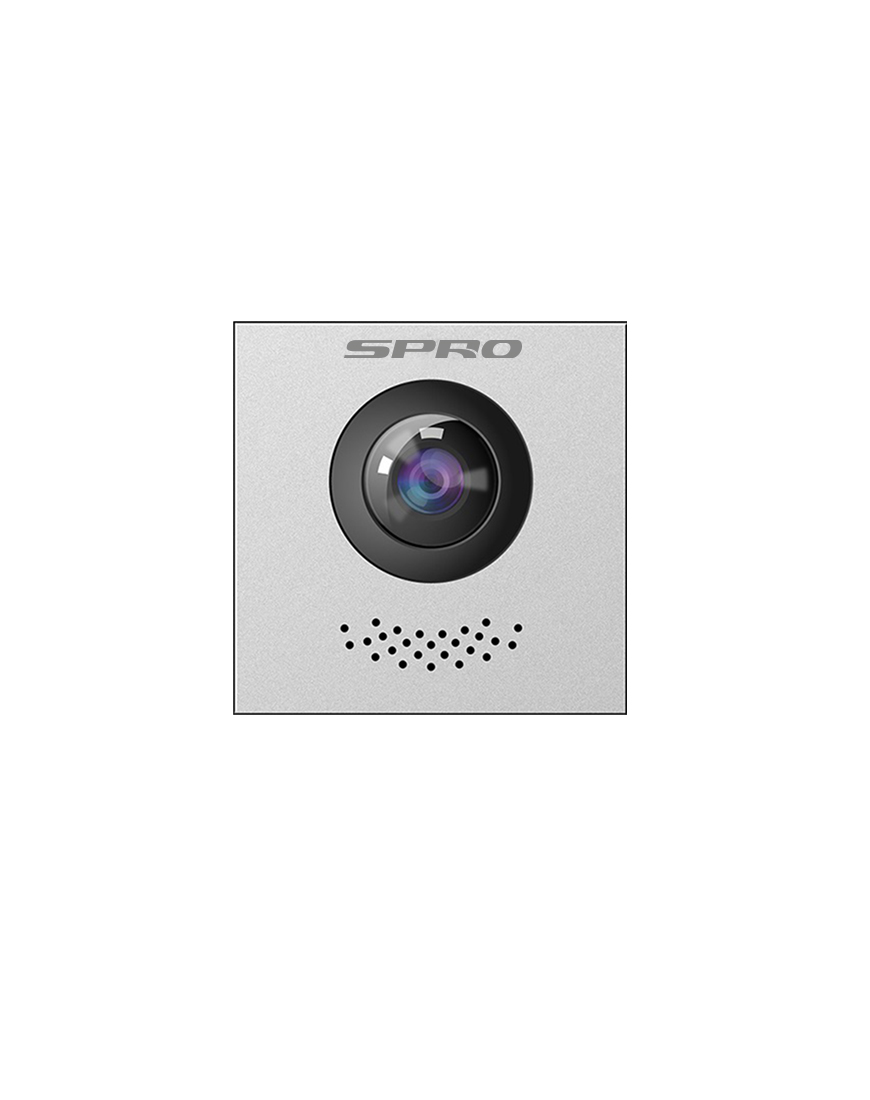

This camera module measuring 100x100x49.35mm, showcases a 2.0MP camera that offers a wide 160° fisheye view, ensuring comprehensive coverage. This module is IP54 rated and IK07 vandal resistance.  Built for both day and night operation, it supports night vision and comes with an integrated microphone and speaker, facilitating clear two-way communication.

Specifications:
Model Number VI-MODULE02-A
System
Main Processor SoC processor
Operating System Embedded LINUX OS
Network Protocol IPv4, RTSP, RTP, TCP, UDP, SIP, P2P
Basic
Camera CMOS Low illumination 2MP HD colorful 160° fisheye camera
Angle of View H:160°, V:82°, D:180°
Focal Length 1.95 mm
WDR WDR
Noise Reduction Noise suppression and echo cancellation
Video Encoding H.264
Frame Rate PAL: 25 fps; NTSC: 30 fps
Video Bit Rate 256K to 2M
Light Compensation IR light
Day/Night Switch Yes
Audio Encoding PCM G.711 A G.711 U
Audio Input Built-in omnidirectional microphone
Audio Output Built-in loudspeaker
Audio Bit Rate 16Khz 16bit
Function
Communication Methods Digital communication
Unlock Mode Remote unlocking
Auto Snapshot Yes
Leave Videos or Text Messages Yes
Web Configuration Yes
Performance
Housing Material Aluminum
Port
RS-485 Port 1 RS-485 half-duplex port
Alarm Output Port 1
Power Output Port 1-ch 12 VDC output 100mA
Unlock Button Exit button for opening the door
Door Status Detection Detects door magnetic status
Door Lock Control NC/COM/NO
Ethernet Port 10/100 Mbps self-adaptive Ethernet/2-wire
Alarm
Tamper Alarm Tamper alarm

Through our logistic partners we are able to deliver to most areas in the UK on a next business day service.
Our standard cut off time on the website for standard next day delivery is 4pm but you will still be able to call our sales team anytime up to 5pm to place an order.
We also offer a premium next day pre 12pm and pre 10:30am service to these areas as well as a Saturday and Saturday pre 10:30am delivery. For areas outside of here, such as the Highlands, Isle of Man and Channel islands we are able to provide a 2 business day service.

For orders outside of the UK please call +44 (0)1438 909168 to speak to a member of the team who will be able to assist you.

Related Products

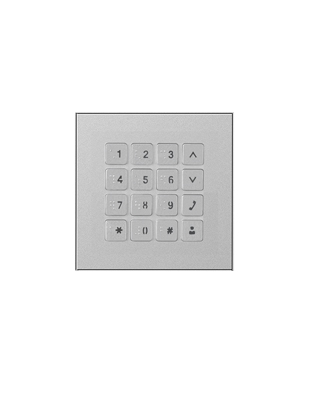

Digital Keypad Module
