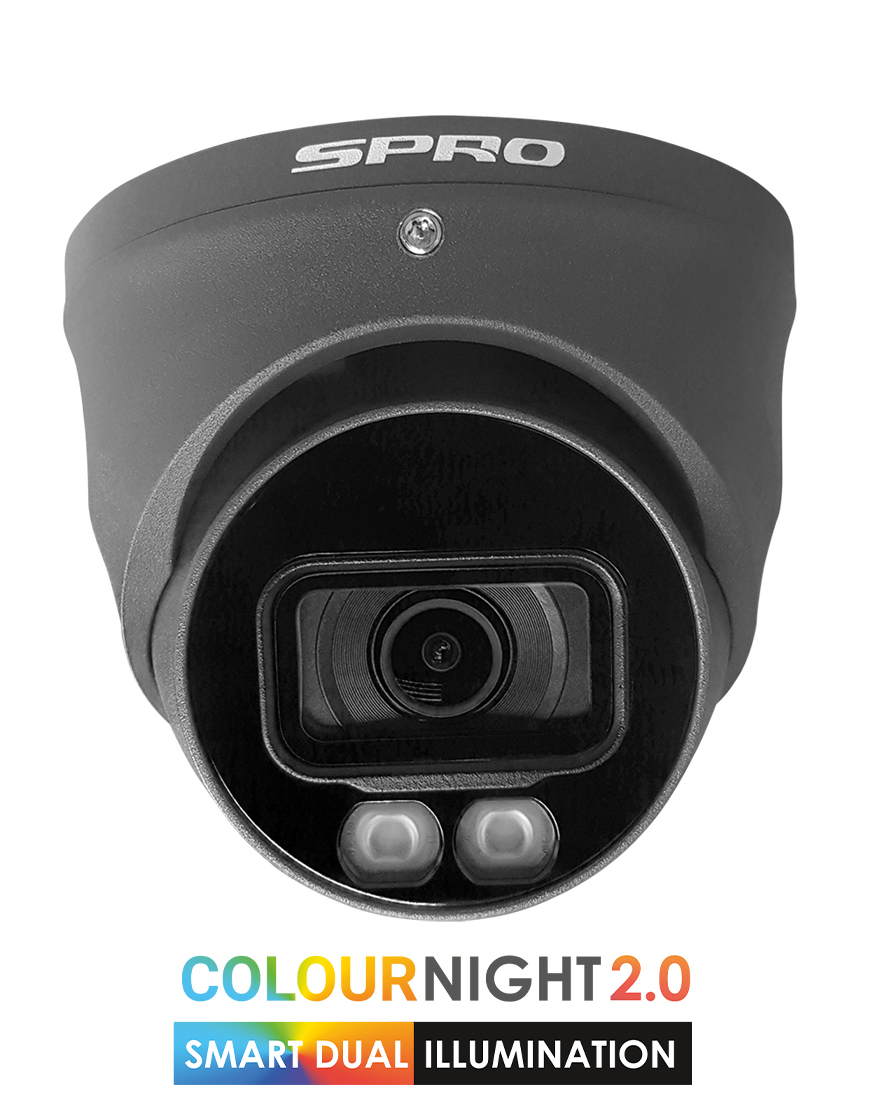

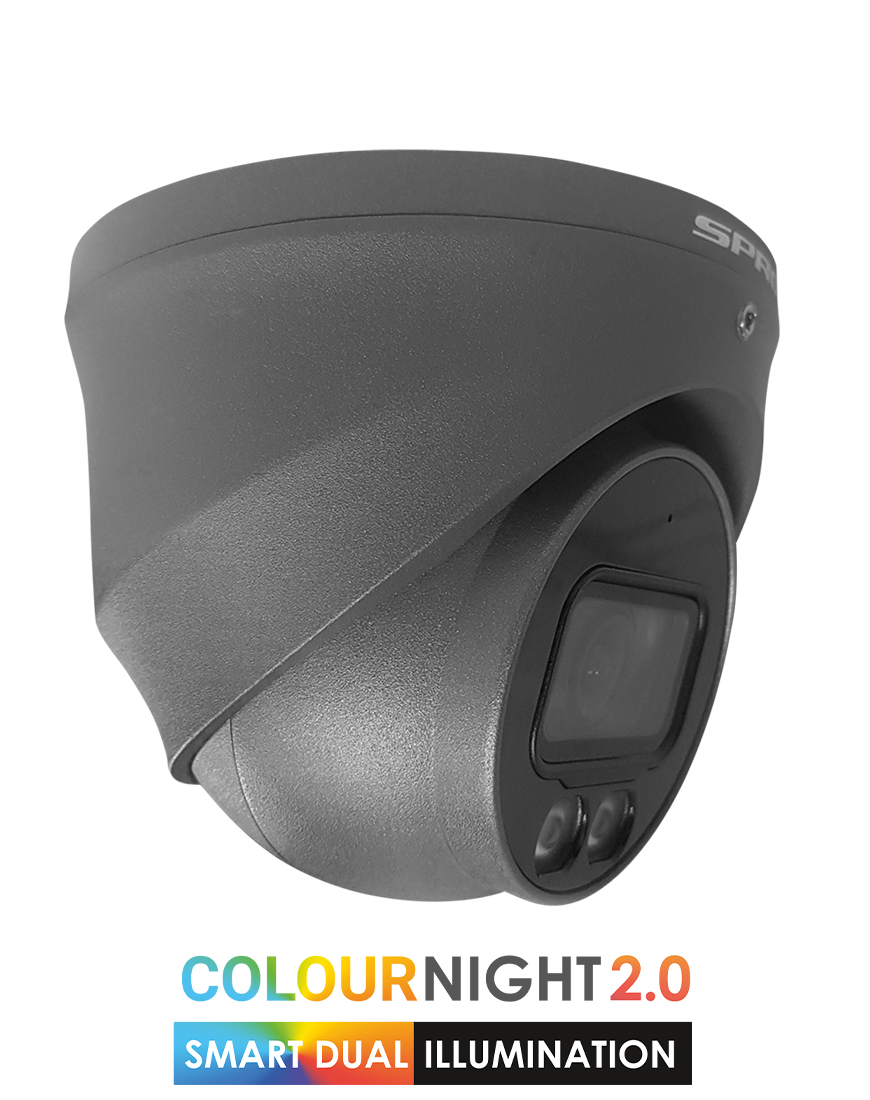

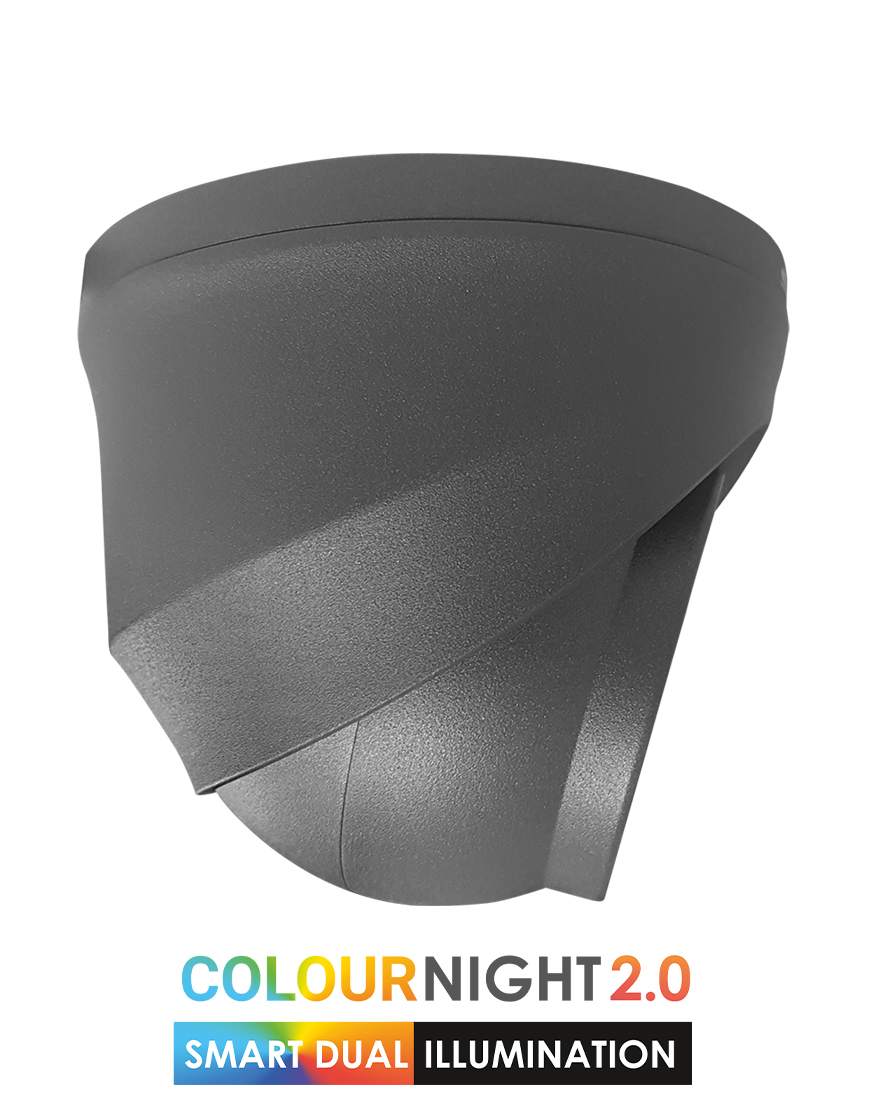

SPRO 5MP 4in1 Fixed Lens Turret with COLOUR NIGHT 2.0

Zoom

Availability

In stock, immediate despatch

You may also like

Pole Bracket

Deep Base, Grey

SPRO Wall Bracket, Grey

Deep Base, Grey

Part Number: DHD50/28LRG-4-M
Brand: SPRO
Camera Resolution 5 Megapixels
Lens Fixed Lens
IR Distance Up to 40m IR distance
Built-in Mic. Yes
Style Turret

Information
Specifications
Delivery

The SPRO ColourNight range of cameras are designed to allow the camera to see full colour images at night. These cameras feature white light LEDs that illuminate the scene.

The second generation SPRO ColourNight cameras also have built-in IR. This IR can produce standard black and white night images throughout the night, freeing up the white light LED to only activate when it detects motion - causing a security light effect. However, the cameras can still be used in the same way as the previous generation - with its white light on continuously throughout the night - if needed.

This camera is compatible with the following DVR models:

DHDVR06-B5-V3
DHDVR12-B5-V3
DHDVR24-B5-V3
DHDVR32-B5

DHDVR06-B6-V2
DHDVR12-B6-V2
DHDVR24-B6-2H-V2
DHDVR32-B6

DHDVR04-B7
DHDVR08-B7
DHDVR16-B7

Specifications:
Model Number	DHD50/28LRG-4-M
Image Sensor	5MP CMOS
Max. Resolution	2880 (H) x 1620 (V)
Pixel	5 MB
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s
Min. Illumination	0.001 lux@F1.0 (Colour, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	>65dB
Illumination Distance	40 m (98.43 ft) (IR); 40 m (98.43 ft) (Warm light)
Illuminator On/Off control	Auto/Manual
Illuminator Number	1 (IR LED); 1(Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Lens Mount	M12
Focal Length	2.8mm;
Max. Aperture	F1.0
Field of View	2.8mm:H:111° V:57° D:131°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 1.5 m (4.92 ft)
DORI Distance	Detect: 66.0m Observe: 26.4m Recognize: 13.2m Identify: 6.6m
Video
Frame Rate	CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: PAL: 960H; NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
Day/Night	Auto(ICR)/Colour/B/W
BLC	BLC/HLC/WDR/HLC-Pro
WDR	120dB
White Balance	Auto; Area White Balance
Gain Control	Auto; Manual
Noise Reduction	3D NR
Defog	Electronic defog
Digital Zoom	4x
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Illumination Mode	Smart IR&WL; WL Mode; IR Mode
Certification
Certifications	CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Video Input	One channel built-in MIC
Power
Power Supply	12 VDC ± 30%
Power consumption	Max 5.7 W (12 VDC, LED on)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to 140 °F)
Operating Humidity	< 95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (-40 °F to 140 °F)
Protection	IP67
Structure
Casing	Metal
Product Dimensions	Φ106.0 mm × 93.6 mm (Φ4.17" × 3.69")
Net Weight	0.49 kg (1.08lb)
Gross Weight	0.66 kg (1.46 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
