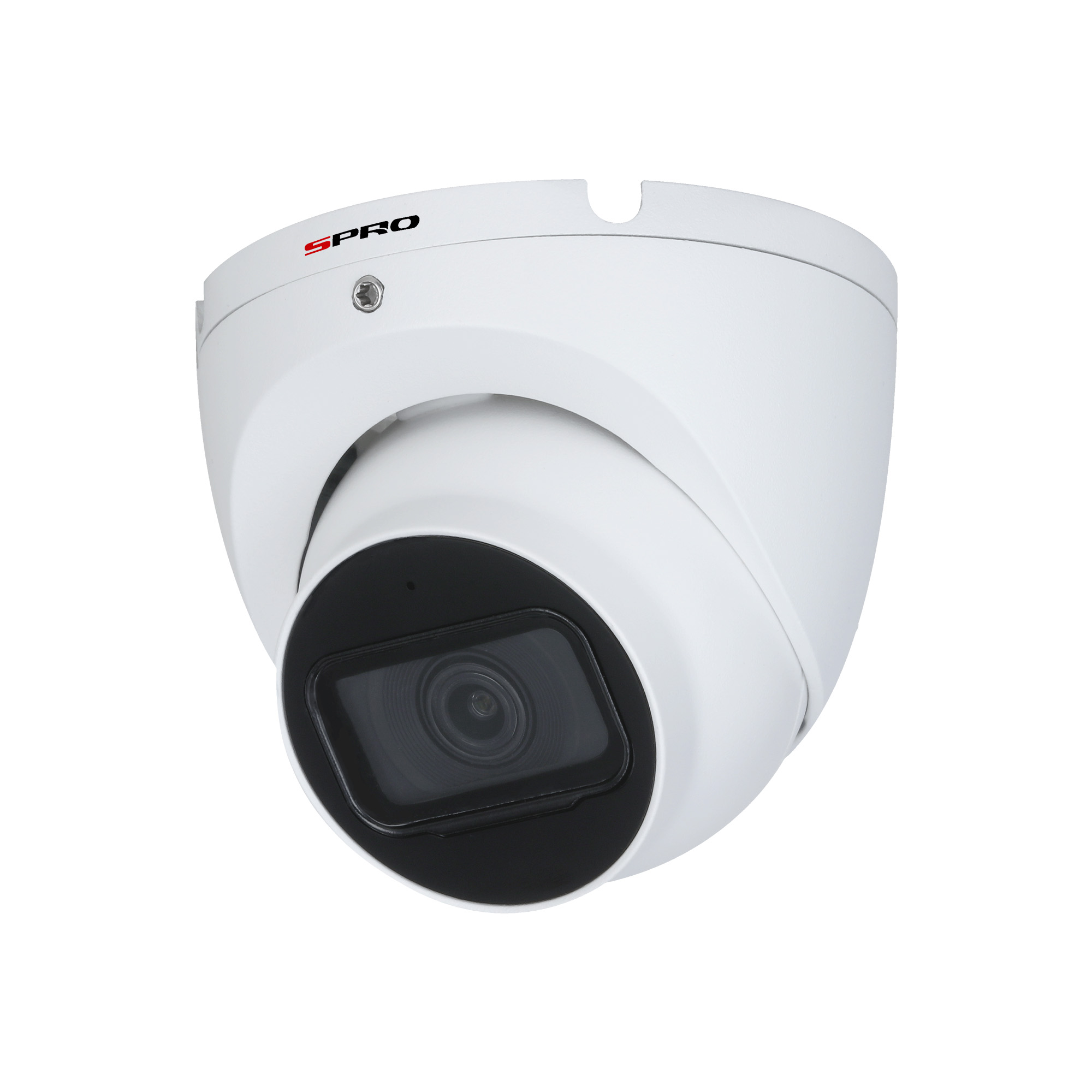

SPRO 5MP Fixed Lens Turret with Microphone Built-in

Zoom

Colour

You may also like

Pole Bracket

SPRO Wall Bracket, White

Deep Base, White

Part Number: DHD50/28RW/30-4-M
Brand: SPRO
Camera Resolution 5 Megapixels
IR Distance Up to 30m IR distance
Built-in Mic. Yes
Ingress Protection IP67

Information
Specifications
Delivery

Introducing the SPRO 5MP Fixed Lens Turret with Built-in Microphone, the ultimate solution for capturing crystal-clear details and sound to ensure complete surveillance coverage.

The camera supports up to 30M IR distance and is in full metal and IP67 waterproof housing, making it ideal for both indoor and outdoor environments.

Key Features

Max 25fps@5MP (16:9 video output)
CVI/CVBS/AHD/TVI switchable
2.8 fixed lens- Built-in mic
Max. IR length 30m, Smart IR
IP67
DC12V

Specifications:
Model Number	DHD50/28RW/30-4-M
Image Sensor	5MP CMOS
Max. Resolution	2880 (H) x 1620 (V)
Pixel	5 MB
Scanning System	Progressive
Electronic Shutter Speed	PAL:1/25 s - 1/100000s NTSC: 1/30s - 1/100000s
Min. Illumination	0.005 Lux/F1.6, 30IRE, 0 Lux IR on
S/N Ratio	>65dB
Illumination Distance	30m (98.4ft)
Illuminator On/Off control	Auto/Manual
Illuminator Number	1 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed lens
Lens Mount	M12
Focal Length	2.8mm
Max. Aperture	F1.6
Field of View	2.8mm:H:111° V:58° D:132°
Iris Control	Fixed
Close Focus Distance	2.8 mm: 0.9 m (3.0 ft)
DORI Distance	Detect: 63.6m Observe: 25.4m Recognize: 12.7m Identify: 6.4m
Video
Frame Rate	CVI: PAL: 5M@25 fps; 4M@25 fps; 1080P@25 fps; NTSC: 5M@25 fps; 4M@30 fps; 1080P@30 fps AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps CVBS: PAL: 960H; NTSC: 960H
Resolution	5M (2880 × 1620); 4M (2560 × 1440); 1080P (1920 ×1080); 960 H (960 × 576/960 × 480)
Day/Night	Auto Switch by ICR
BLC	BLC/HLC/DWDR
WDR	DWDR
White Balance	Auto; Area White Balance
Gain Control	Auto; Manual
Noise Reduction	2D NR
Smart IR	Yes
Mirror	Off/On
Privacy Masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE (EN55032, EN55024, EN50130-4, EN62368-1) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Video Input	One channel built-on mic
Power
Power Supply	12 VDC ± 30%
Power consumption	Max 3.2W (12V DC, IR on)
Environment
Operating Temperature	–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Storage Temperature	–40°C to +60°C (-40°F to 140°F); < 95% (non-condensation)
Protection	IP67
Structure
Casing	Metal
Product Dimensions	φ94.0 mm × 85.7 mm (φ3.70" × 3.37")
Net Weight	0.33 kg (0.73 lb)
Gross Weight	0.47 kg (1.04 lb)
