| Specifications: | |

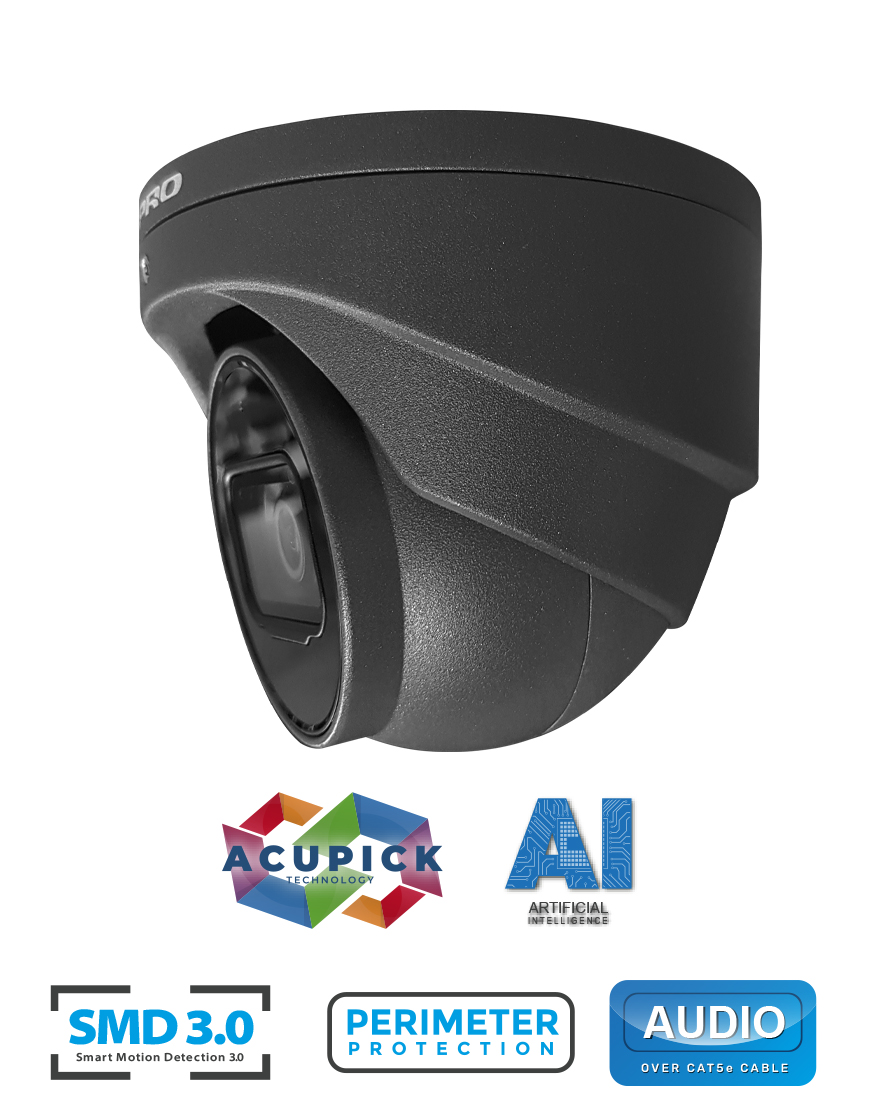

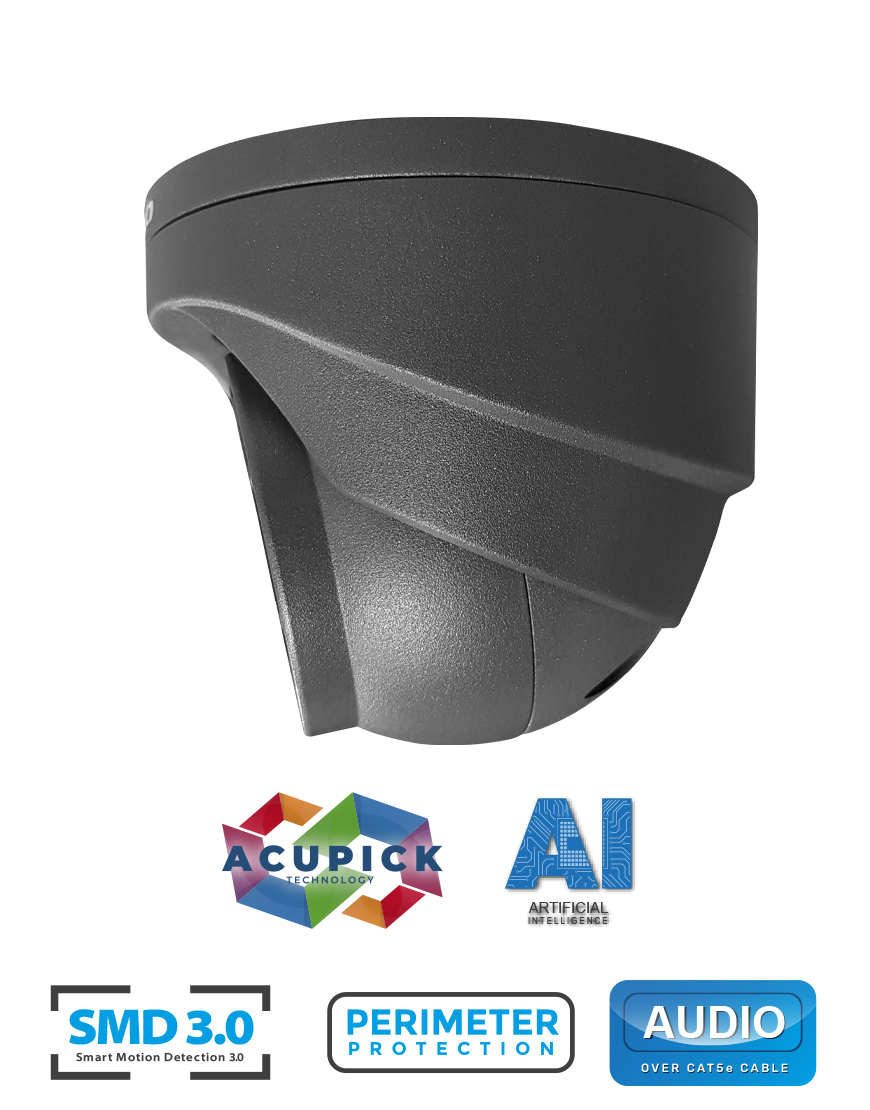

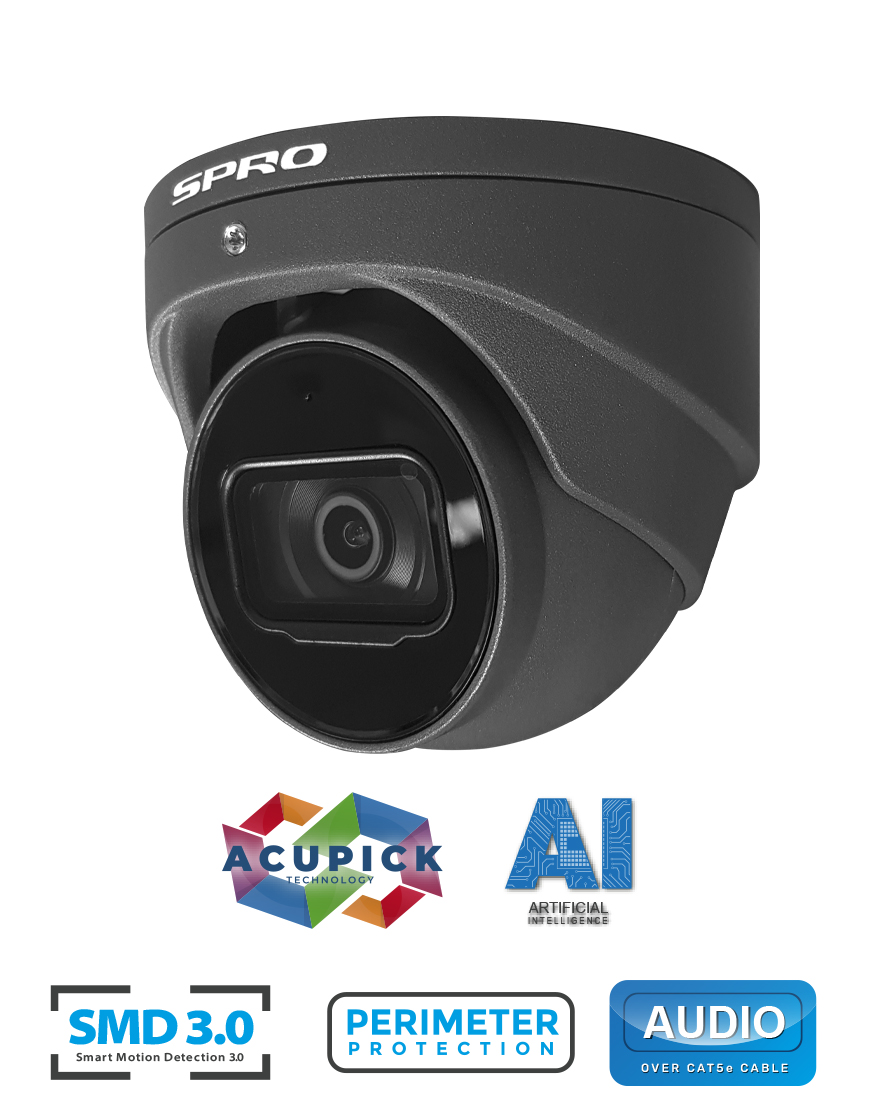

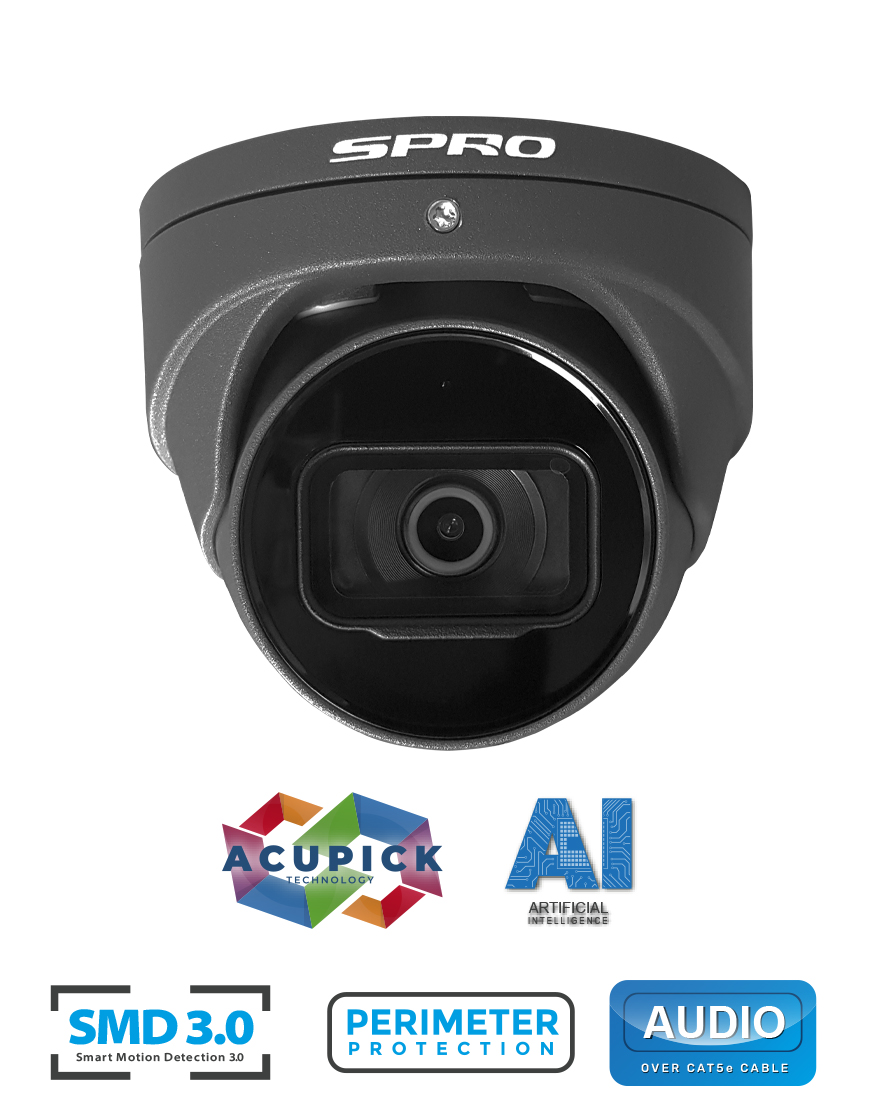

| Model Number | DHIPD40/28RG/50-M-I2 |
| Camera | |
| Image Sensor | 1/1.8” CMOS |
| Max. Resolution | 2688 (H) x 1520 (V) |
| RAM | 4GB |
| ROM | 1GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| S/N Ratio | > 56 dB |
| Min. Illumination | 0.0007 lux@F1.6 (Colour, 30IRE)
0.0004 lux@F1.6 (B/W, 30IRE)
0 lux (Illuminator on) |
| Illumination Distance | 50 m (164.04 ft) (IR) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 112°; V: 58°; D: 139° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.3 m (4.27 ft) |
DORI
Distance | Lens: 2.8mm
Detect: 61.5 m
Observe: 24.6 m
Recognise: 12.3 m
Identify: 6.2 m |
| Intelligence | |
| IVS | Intrusion, tripwire, fast moving ( the three functions support the
classification and accurate detection of vehicle and human);
loitering detection, people gathering and parking detection |
| Smart Object Detection | Smart abandoned object; smart missing object |
| SMD 3.0 | Less false alarm, longer detection distance |
| AI SSA | Yes |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal
face snapshot upload; face enhancement; face exposure; face
attributes extraction including 6 attributes and 8 expressions; face
snapshot set as face, one-inch photo or custom; snapshot strategies
(real-time snapshot, quality priority and optimization snapshot);
face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/
week/month/year); people counting in area and queue
management; generating and exporting report (day/week/month);
4 rules can be set for tripwire, people counting in area and queue
management. |
| Heat Map | Yes |
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection;
track; snapshot; snapshot optimization; optimal face snapshot
upload. Motor vehicle attributes: vehicle type, vehicle colour,
vehicle logo and other attributes : seatbelt, smoking, calling.
Non-motor vehicle attributes: type, colour, number of people,
top type and colour, hat. Human body attributes: gender,
top/bottom type and colour, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask
and beard. |
| Smart Search | Work together with Smart NVR to perform refine intelligent search,
event extraction and merging to event videos. |
| Smart Sound Detection | Yes |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) /
1920 × 1080 (1 fps–50/60 fps)
Sub stream: D1@(1–25/30 fps)
Third stream: 1080p@(1–25/30 fps)
Fourth stream: 720p@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity. |
| Stream Capability | 4 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1535);
3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960);
720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480);
CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–16384 kbps
H.265: 12 kbps–11008 kbps |
| Day / Night | Auto(ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 140 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON ( 4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution
and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G:711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection;
IP conflict; illegal access; motion detection; video tampering; tripwire;
intrusion; fast moving; abandoned object; missing object; loitering
detection; people gathering; parking detection; scene changing;
audio detection; voltage detection; external alarm; face detection;
video metadata; SMD; people counting in area; stay detection;
people counting; people number error detection; queue people
number alarm; queue time alarm; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Enhancement Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP;
SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS;
SAMBA; PPPoE; SNMP; P2P |
| Interoperability | ONVIF (Profile S / Profile G / Profile T); CGI |
| User / Host | 20 (Total bandwidth: 80M) |
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS |
| Browser | IE; Chrome ; Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android; |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs;
WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC
filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption;
generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Port | |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: wet contact, 5mA 3V-5V DC |
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af)/ePoE |
| Power Consumption | Basic: 4.3 W (12 VDC); 5.5 W (PoE);
Max. (H.265+ WDR+ Intelligence on+IR on): 8.2 W (12 VDC); 9.7 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 500 g (1.10 lb) |
| Gross Weight | 770 g (1.70 lb) |
