| Specifications: | |
|---|

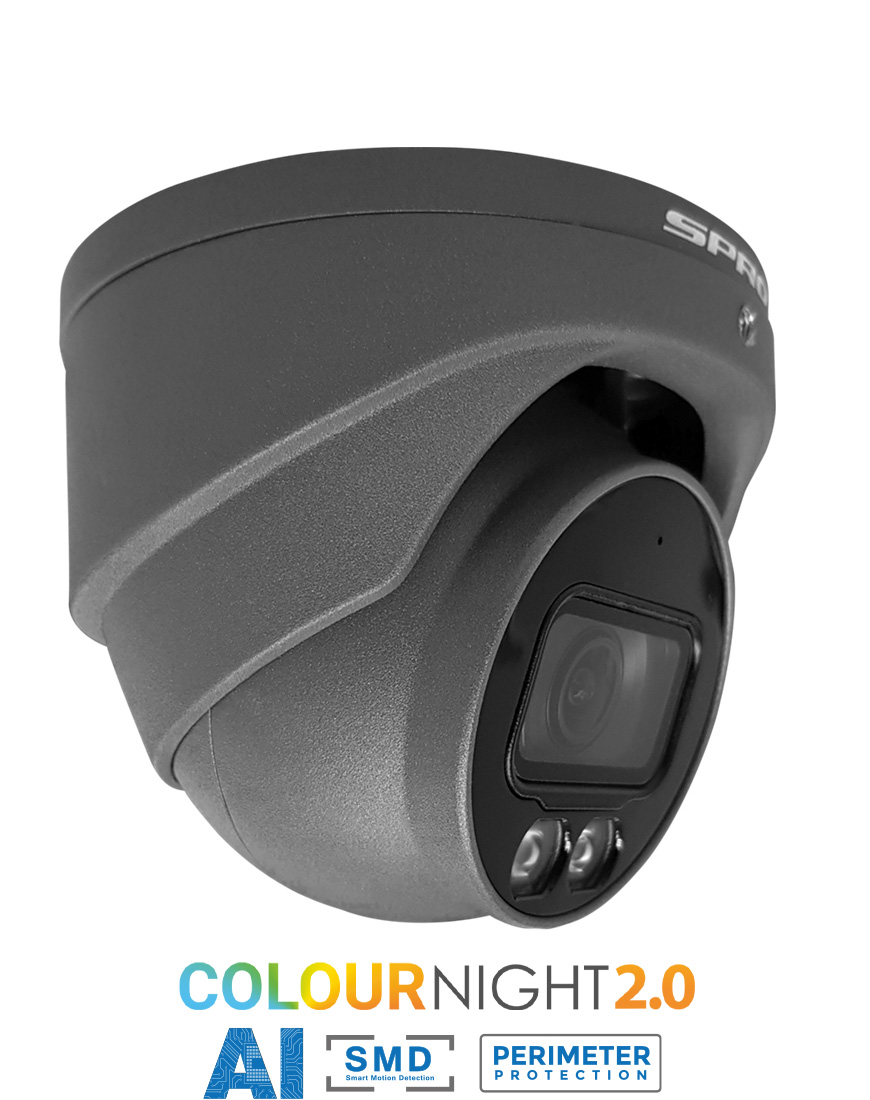

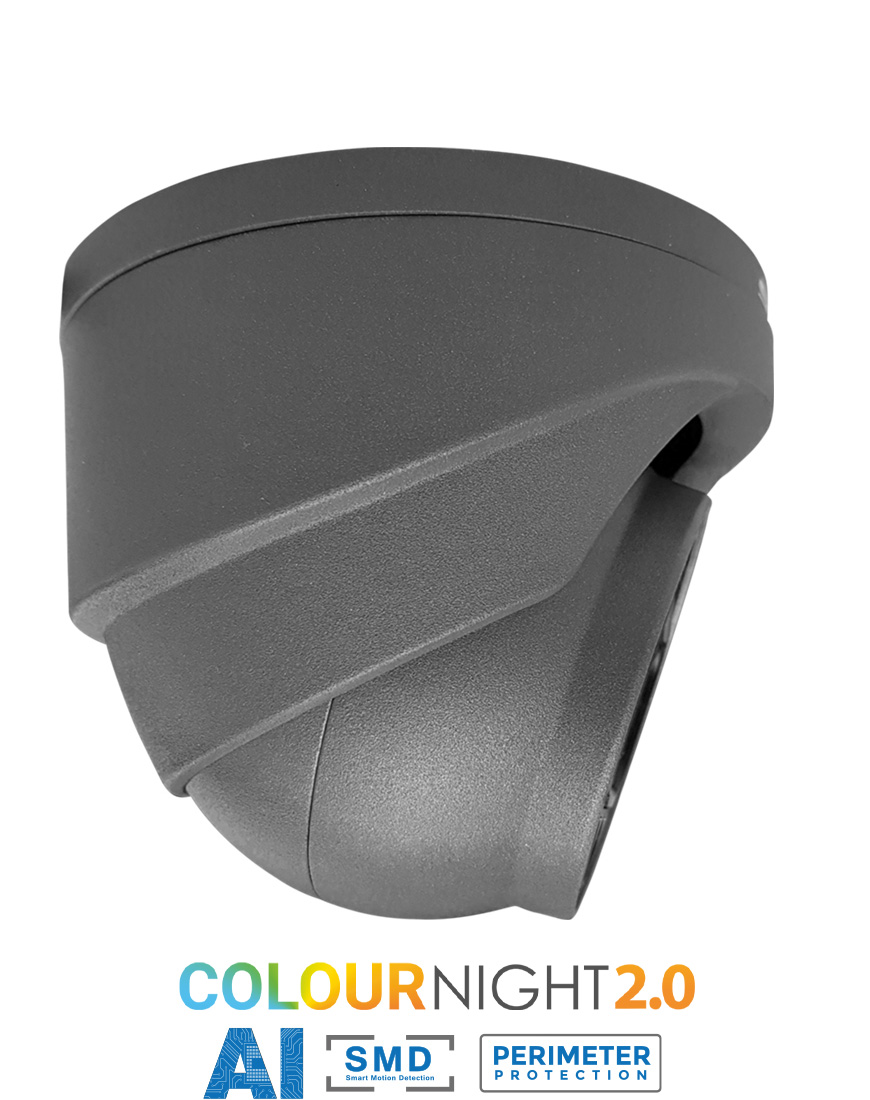

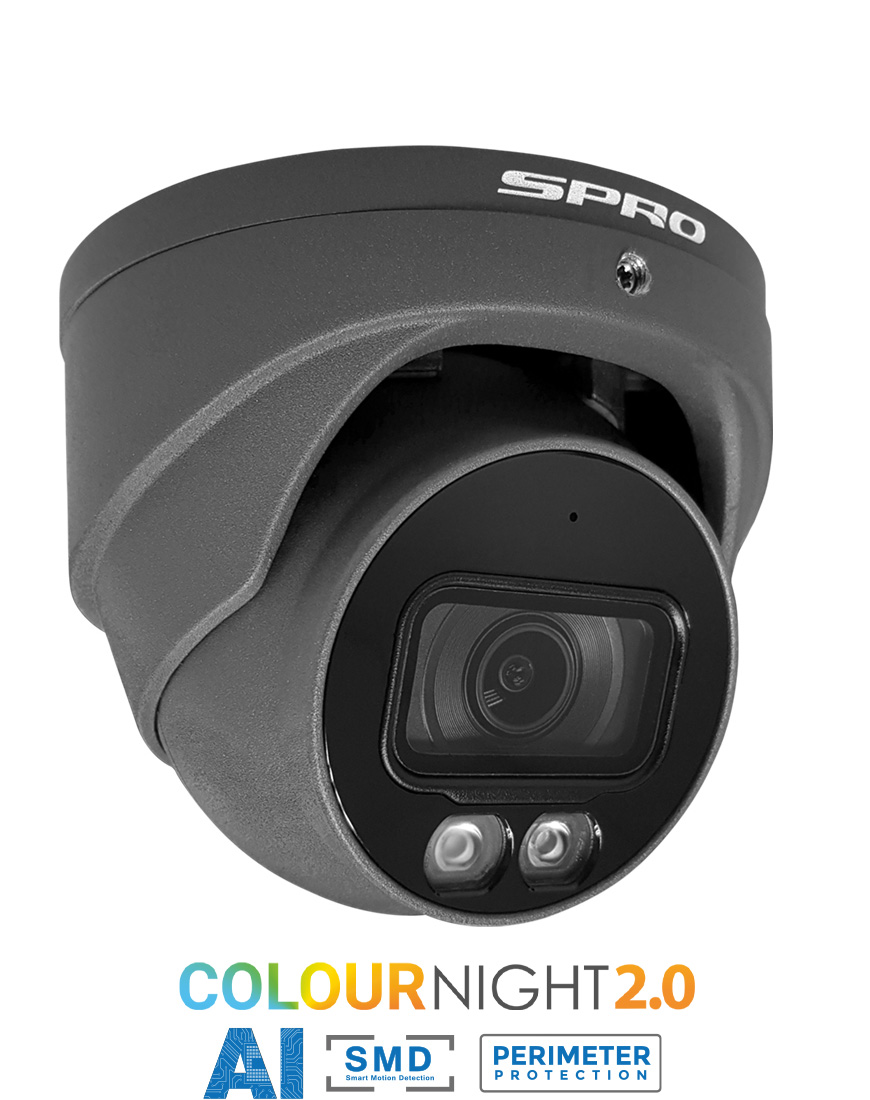

| Model Number | DHIPD80/28LRG-M |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3280 (H)x2160(V) |
| ROM | 128 MB |
| RAM | 256MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s-1/100.000 s |
| Min. Illumination | 0.008 lux@F1.6 (Colour, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on) |
| S/N Ratio | >56dB |
| Illumination Distance | 30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off control | Auto/Manual |
| Illuminator Number | 1 (IR LED); 1(Warm light) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
| Lens | |
|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: H: 111°; V: 58°; D: 132° 3.6 mm: H: 87°; V: 49°; D: 100° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) |
| DORI Distance | Detect: 84.8m Observe: 33.9m Recognize: 17.0m Identify: 8.5m |
| Intelligence | |
|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams,
the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048);
3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620);
2688 × 1520 (2688 × 1520); 3M (2048 × 1536);
2304 × 1296 (2304 × 1296); 1080p (1920 × 1080);
1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);
VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Colour/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 Areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection;
IP conflict; illegal access; motion detection; video tampering;
tripwire; intrusion; audio detection; voltage detection; SMD;
security exception |
| Network | |
|---|
| Network Port | RJ-45 (10/100/1000 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP;
FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP;
IGMP; NFS; PPPoE; Boujour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| User/Host | 20 (Total bandwidth:48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE:
Chrome
Firefox |
| Management Software | DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout;
syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade;
trusted boot; firmware encryption; generation and importing of X.509 certification |
| Power | |
|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power consumption | Basic: 2.6 W (12 VDC); 3.3 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE) |
| Environment | |
|---|
| Operating Temperature | –40 °C to +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
|---|
| Casing | Metal |
| Product Dimensions | 89.2 mm × Φ105.0 mm |
| Net Weight | 0.365 kg |
| Gross Weight | 0.527 kg |
