| Specifications: | |
| Model Number | DHIPNVR04-A5 |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| Operation Interface | Web; local GUI |
| AI | |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by NVR | Face detection; face recognition; perimeter protection; SMD Plus |
| Perimeter Protection | |
Perimeter Performance AI
by NVR(Number of Channels) | 1 |
Perimeter Performance of AI
by Camera (Number of Channels) | 4 |
| Face Detection | |
| Face Attributes | 6 attributes: Gender; age group (6); glasses; expressions (8);
mouth mask; beard |
Face Detection Performance
of AI by NVR (1080P)
(Number of Channels) | 1 (up to 12 face images/second) |
Face Detection Performance
of AI by Camera
(Number of Channels) | 4 |
| Face Recognition | |
| Face Database Capacity | Up to 10 face databases with 5,000 images |
Face Recognition Performance
of AI by NVR (1080P)
(Number of Channels) | 1 (up to 4 face images/second) |
Face Recognition Performance
of AI by Camera
(Number of Channels) | 4 |
| SMD Plus | |
| SMD Plus by NVR | 4 channel |
| SMD Plus by Camera | 4-channel SMD Plus (AI by camera): filters false alarms caused by
leaves, raindrops and change of brightness |
| Video | |
| Access Channel | 4 channels |
| Network Bandwidth | 80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding. |
| Resolution | 12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1 |
| Decoding Capability | AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps;
2-channel 5MP@30 fps; 3-channel 4MP@30 fps;
6-channel 1080p@30 fps
AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps;
2-channel 4MP@30 fps;
4-channel 1080p@30 fps |
| Video Output | 1 × VGA, 1 × HDMI (simultaneous) |
| Multi-screen Display | 1, 4 views |
| Third Party Camera Access | Onvif |
| Compression | |
| Video | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio | PCM; G711A; G711U; G726 |
| Network | |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP;
IP Filter; DDNS; Alarm Server; IP Search ; P2P;Auto Registration |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF ( Profile T; profile S; profile G ); CGI; SDK |
| Browser | Chrome; IE9 or later; Firefox |
| Record Playback | |
| Multi-channel Playback | Up to 4 channels |
| Record Mode | Manual record; alarm recordings; motion detection recordings;
scheduled recordings |
| Storage | Local HDD and network |
| Backup | USB Device |
| Playback Function | 1. Play; pause; stop; fast forward; fast backward; rewind;
play by frame
2. Full screen; backup (vide clip/file); partially zoom in; audio on/off |
| Alarm | |
| General Alarm | Motion detection; privacy masking; video loss; PIR alarm; IPC alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict;
login lock; cyber security exception |
| Intelligent Alarm | Face detection; face recognition; perimeter protection
(intrusion and tripwire); IVS; SMD Plus |
| Alarm Linkage | Recording; snapshot; buzzer; log; preset; email; tour |

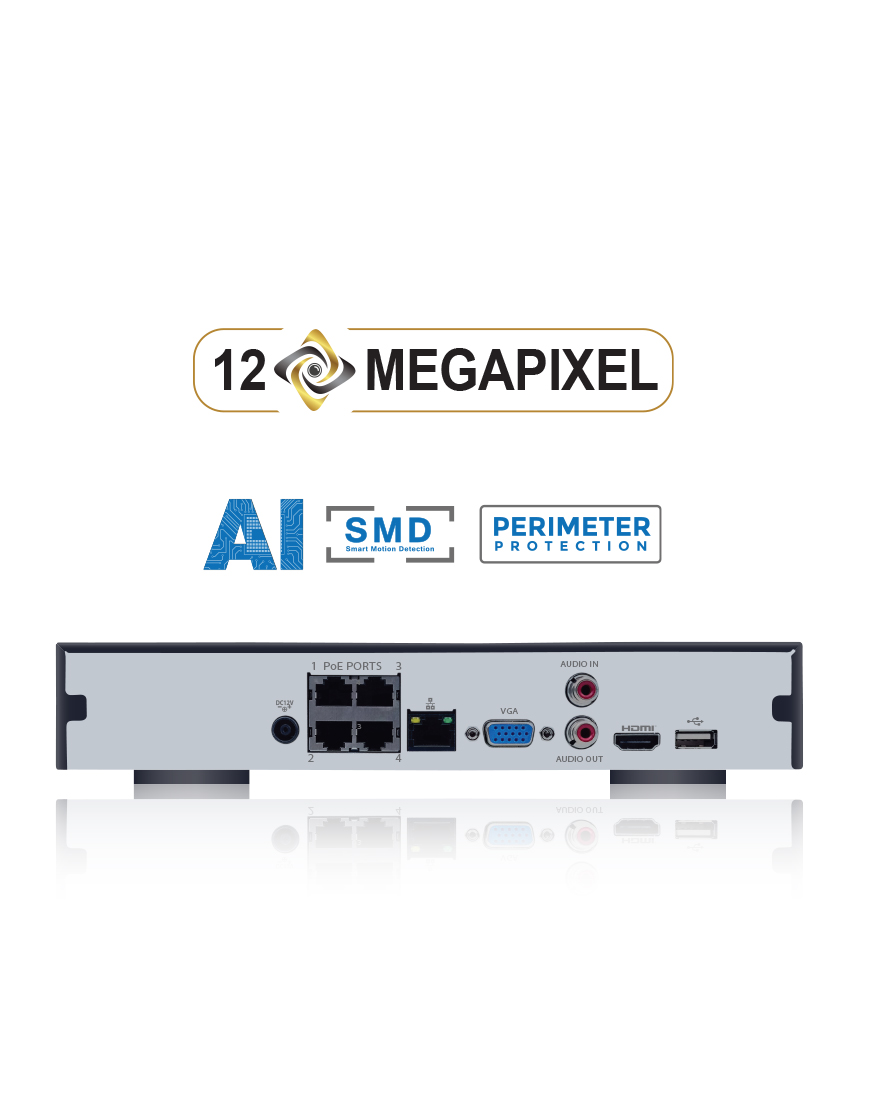

| External Port | |
| HDD | 1 SATA port, up to 10 TB. The maximum HDD capacity varies
with environment temperature |
| USB | 1 × front USB2.0; 1 × back USB2.0 |
| HDMI | 1 (max. resolution: 4K) |
| VGA | 1 |
| Network | 1x RJ-45, 10/100/1000 Mbps |
| PoE | 4x PoE ports, 10/100 Mbps |
| RCA Input | 1 |
| RCA Output | 1 |
| General Parameter | |
| Power Supply | 53VDC, 1.13A |
| Power Consumption | Total output of NVR is ≤ 10W (without HDD)Total output power
of PoE is 72W, the maximum output power of asingle port is 25.5W |
| Net Weight | 0.86 kg (1.90 lb) |
| Gross Weight | 1.86 kg (4.10 lb) |
| Product Dimensions | 260 mm × 232.7 mm × 47.6 mm (10.24" × 9.16" × 1.87") (W × L × H) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Storage Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | 3,000 m (9,842.52 ft) |
| Installation | Desktop |
| Certifications | FCC:47 CFR FCC Part15,SubpartB,Class A
CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;
EN 61000-3-3:2013+A1:2019;EN 55024:2010+A1:2015;
EN 55035:2017;EN 50130-4:2011+A1:2014
CE-LVD:EN 62368-1:2014+A11:20171234678951Power |
