| Specifications: | |

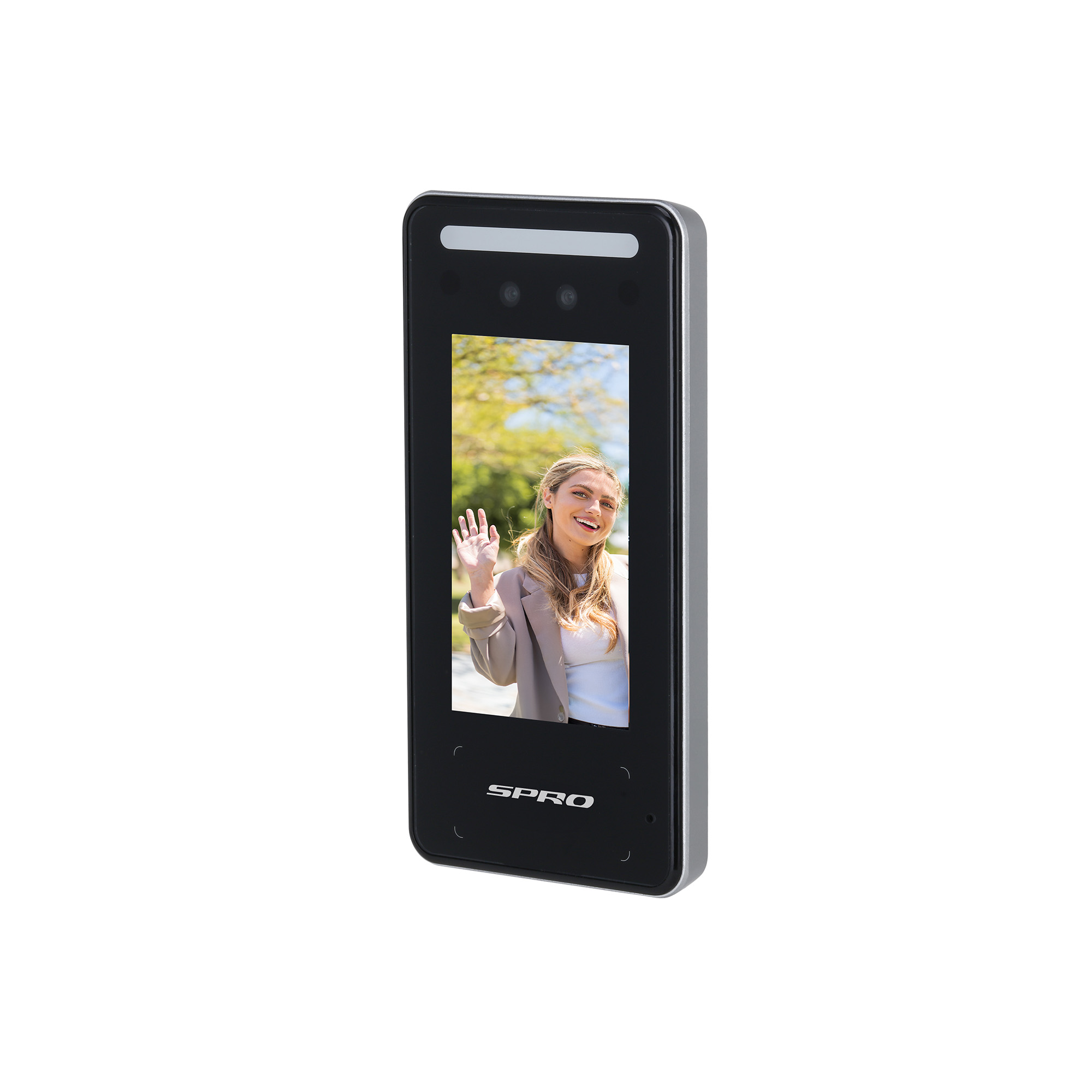

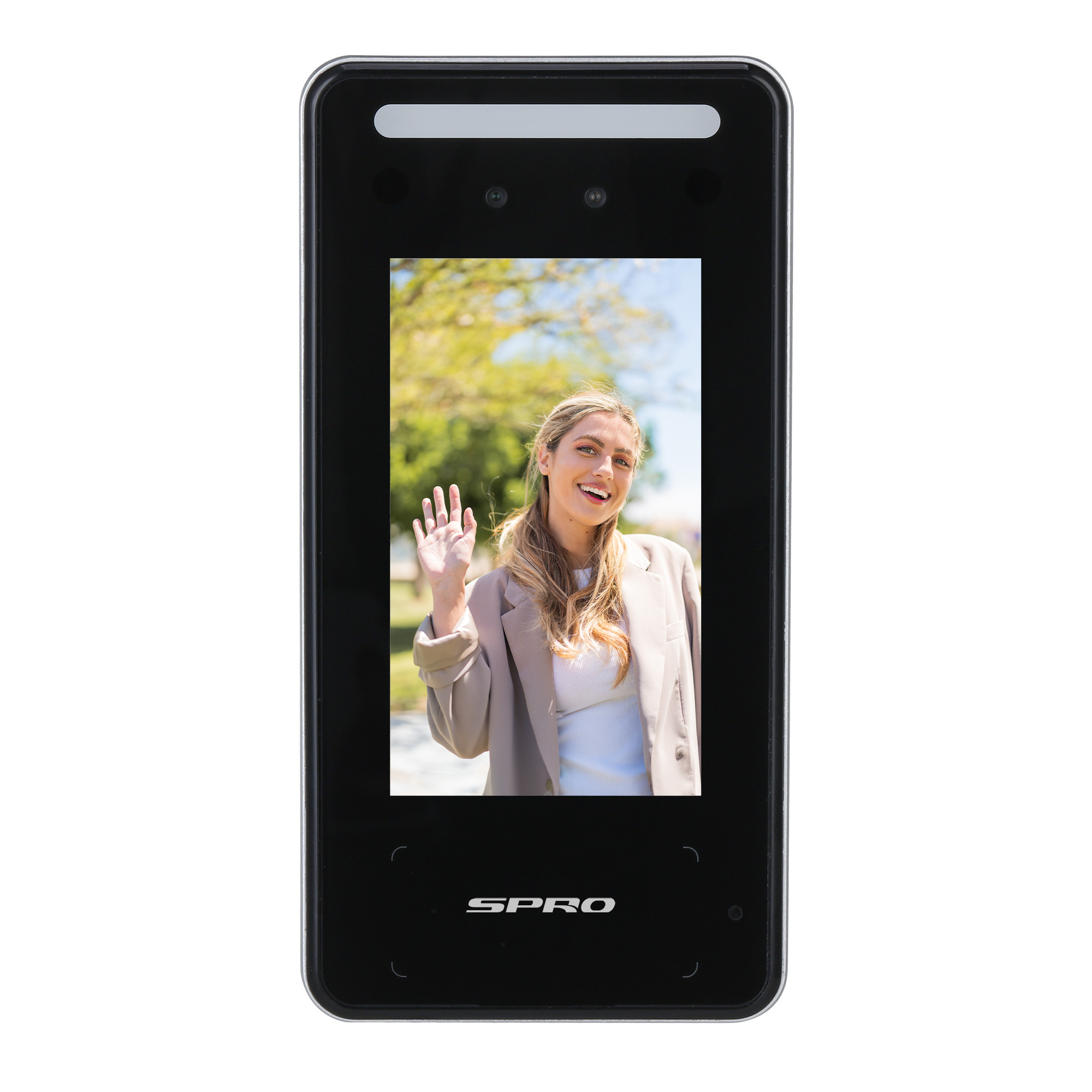

| Model Number | VI-ACFD01 |
| Main Processor | Industrial-grade processor |
| Internet Protocol | IPv4; RTSP; RTP; TCP; UDP; P2P |
| OSDP Protocol | Support |
| Interoperability | CGI |
| SDK | Support |
| Basic | |
| Display | 4.3 inch TFT screen |
| Screen Type | Capacitive touch screen |
| Screen Resolution | 480 × 272 |
| Camera | 2MP CMOS high definition camera |
| WDR | DWDR |
| Light Compensation | Auto white light; Auto IR light |
| Voice Prompt | Support |
| Operating Interface | PC; Metal rear case |
| Function | |
| Unlock Mode | Card/Password/Face unlock and unlock through their
combinations |

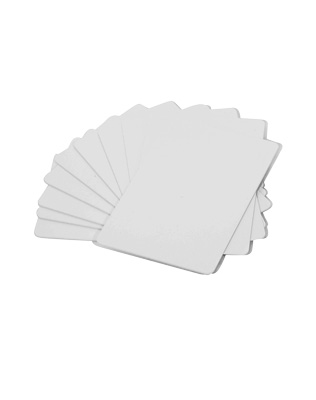

| Card Reading Type | IC Card |
| Period List | 128 |
| Holiday Period | 128 |
| First-Card Unlock | Support |
| Remote Verification | Support |
| Peripherical Card Reader | 1 RS-485
1 Wiegand |
| Multiple User Unlock | Support |
| Real-Time Surveillance | Support |
| Web Configuration | Support |
| Performance | |
| Face Recognition Height | 0.9 m–2.4 m |
| Face Recognition Distance | 0.3 m–1.5 m |
| Face Verification Accuracy | 99.05% |
| Face Recognition Time | 0.3s |
| Capacity | |
| User Capacity | 6000 |
| Face Image Capacity | 6000 |
| Card Capacity | 6000 |
| Password Capacity | 6000 |
| Record Capacity | 150 000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 x USB2.0 Port |
| Network | 1 x RJ-45 10/100 Mbps self-adaption |
| Alarm Input | 1 |
| Alarm Linkage | Support |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Alarm | |
| Anti-Passback | Support |
| Tamper | Support |
| Duress | Support |
| Door Sensor Timeout | Support |
| Intrusion | Support |
| Illegal Card Exceeding Threshold | Support |
| General | |
| Power Supply Mode | 12V DC, 2A |
| Protection Grade | IP65 (Apply silica gel to gaps between the device and the wall.
Liquid sodium silicate is recommended. For details, see the quick
startguide.) |
| Power Consumption | ≤ 24W |
| Product Dimensions | 174.0 mm × 87.5 mm × 22.5 mm (6.85" × 3.44" × 0.88" ) |
| Working Temperature | –30°C to 60°C (–22°F to 140°F) |
| Working Humidity | 5%RH–95%RH (non-condensing) |
| Working Environment | Indoor - Outdoor |
| Gross Weight | 0.78 kg (1.72 lb) |
| Accessory | Bracket (Provided) |
| Installation Method | Surface mount |
| Certification | CE; FCC |
