WisuAlarm Interconnected Smoke Alarm with 10 Year Sealed Battery

Availability

In stock, immediate despatch

Part Number: WA-HY-SA30A-R8

Information
Specifications
Delivery

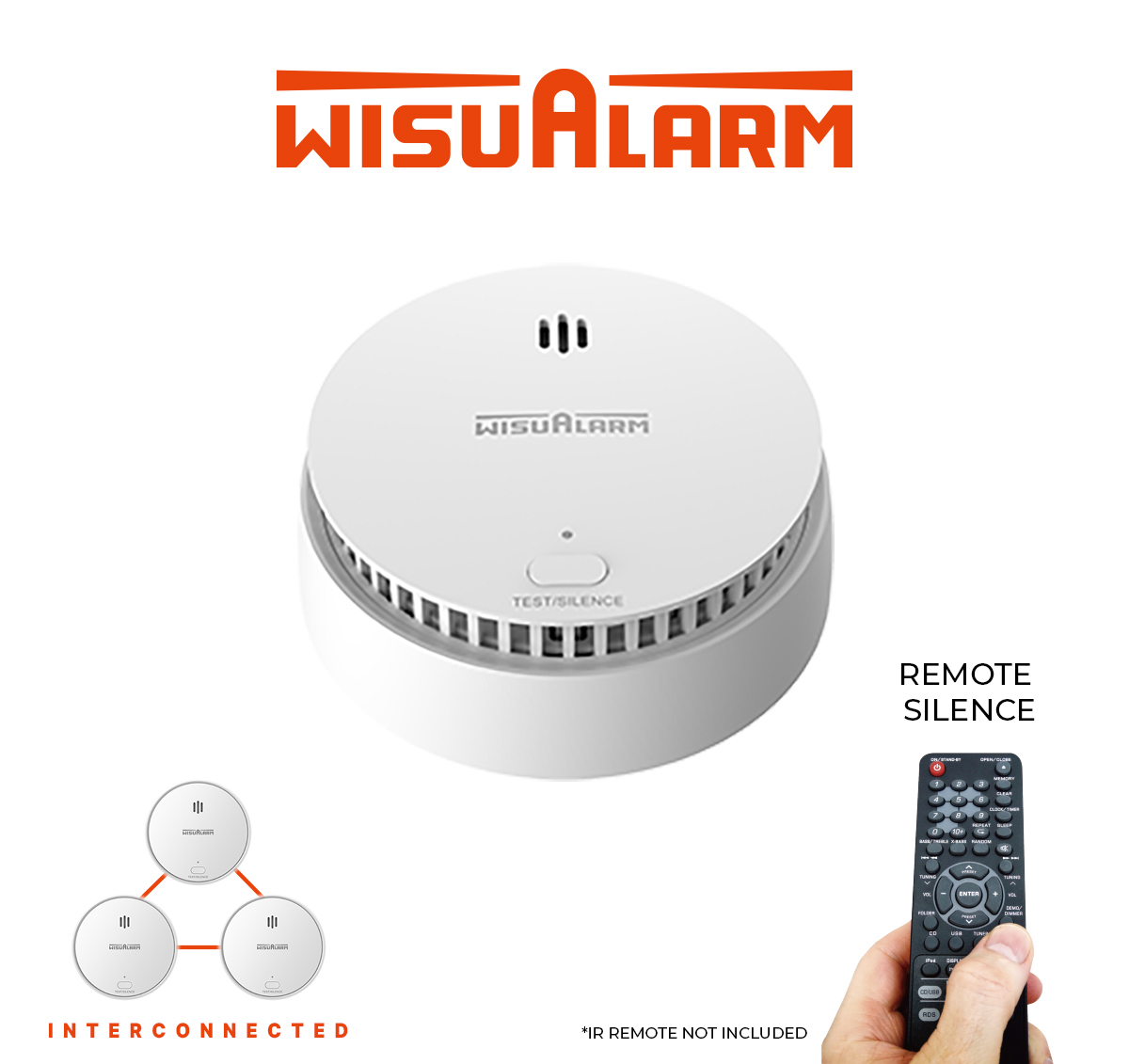

This interlinkable smoke detector contains an impressive 10-year battery life and boasts a number of technologies designed to enhance its performance. It is equipped with Split-Spectrum technology, working to accurately sense the presence of smoke while eliminating the risk of false alarms from steam or similar. Additionally, users can take advantage of the Remote Silence feature, allowing them to silence this smoke detector using most IR remotes. Given its battery-powered operation, this cutting-edge smoke detector is ideally suited for residential applications.

• Split-spectrum sensor technology
• Test and silence features in one single button
• Loud sound output over 85 dB(A) at 3 meters
• Low quiescent current consumption
• Surface-mount device (SMD) circuit board design
• Low battery warning signal
• Built-in sealed battery ( Unreplaceable ), easy installation
• Silenced by a working infrared remote controller
• Wireless interconnected with maximum of 24 devices

TECHNICAL SPECIFICATION:
Model Number	WA-HY-SA30A-R8
Collection Type	Smoke
Sampling Period	9s
Working Principle	Photoelectric
Alarm
Alarm Type	Smoke alarm, fault alarm, low battery warning
Alarm Volume	85dB (A) at 3 m (9.84 ft)
Alarm Mode	Visual and audible alarm
Silence Function	Yes
Silence Duration	12 min
Infrared Silence	Yes
Pre-Set Alarm Value	0.2dB/m-0.3dB/m
Basic Parameters
Indicator Light	Alarm, fault and operation indicator
LED Instructions	Standby: Green indicator flashes once per minute Alarm: Red indicator flashes once per second Fault: Red indicator flashes once per minute Low battery warning: Red indicator flashes once per minute
Operating Frequency	868 MHz
Maximum Number of Interconnected Units	24pcs
Coverage Area	When the height of the space is less than 8 m (3.28 ft), the protection area of a device is 20 m2–40 m2
Power Supply
Battery Life	10 Years
Power Source	3V CR123A Lithium battery (non-replaceable)
Operating Current	Monitoring current: ≤ 15uA (avg.) Alarm current: ≤ 25mA (avg.)
Operating Ambient
Operating Environment	Indoor use only
Operating Temperature	c-10°C to +55°C (+14°F to +131°F)
Operating Humidity	≤95% RH (non condensing)
Appearance
Colour	White
Material	PC + ABS
Dimensions	φ98 mm × H43.1 mm (φ3.85" × H1.70")
Weight	138 g (0.30 lb)
Installation	Wall Mount
Certification
Certifications	TÜV and CE listed
Compliance Standard	EN 14604:2005+AC:2008
